SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Power Consumption | Maximum: 2.3W (220V/50Hz) |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm) |
| Max Heat Dissipation | 7.83 BTU/h |
| PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology 802.3X Flow Control 802.1P/DSCP QoS (for V2 and later version) IGMP Snooping |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

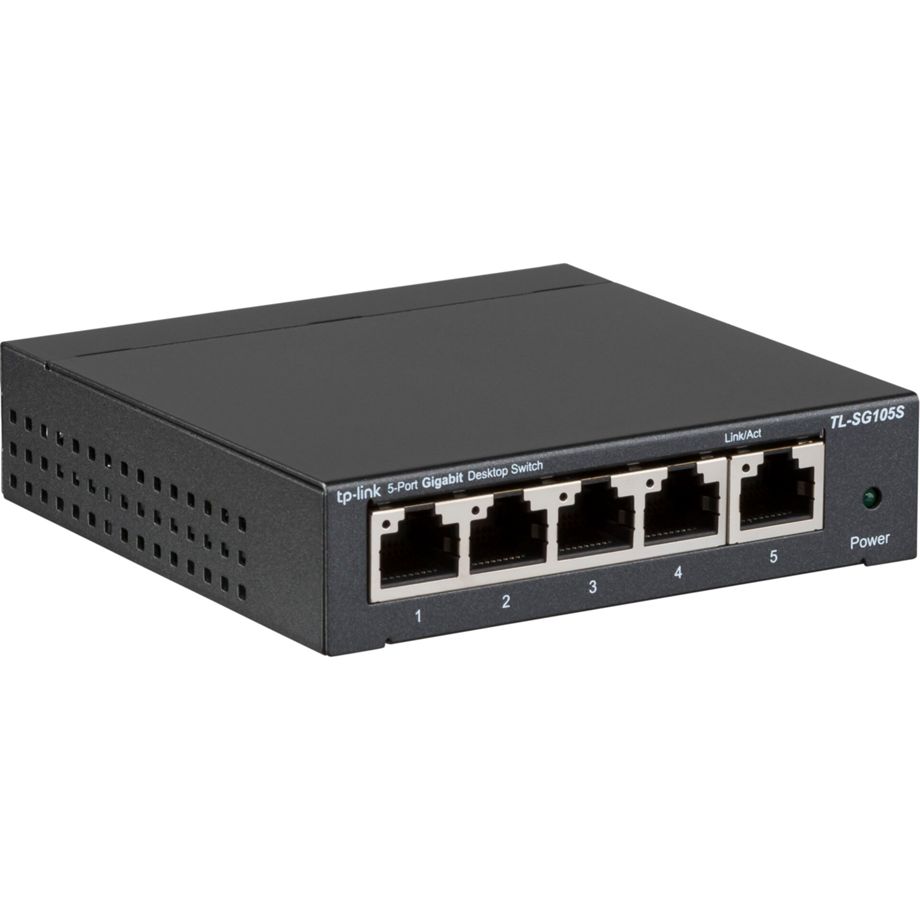

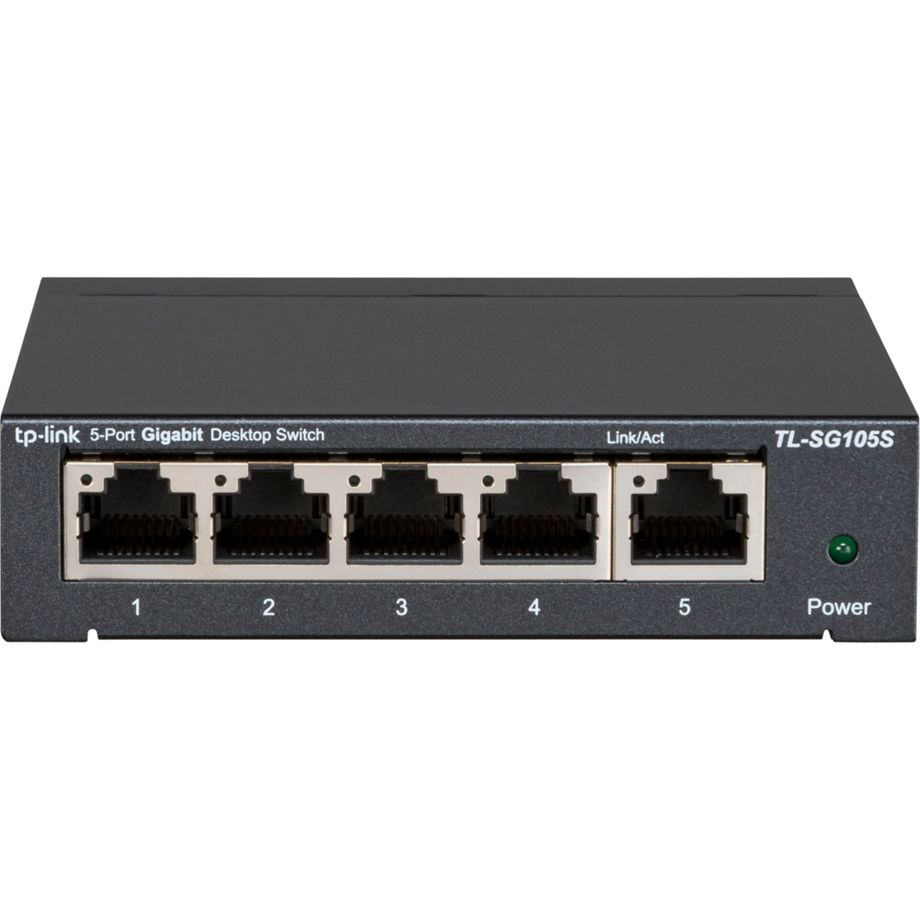

| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
