SPECIFICATIONS

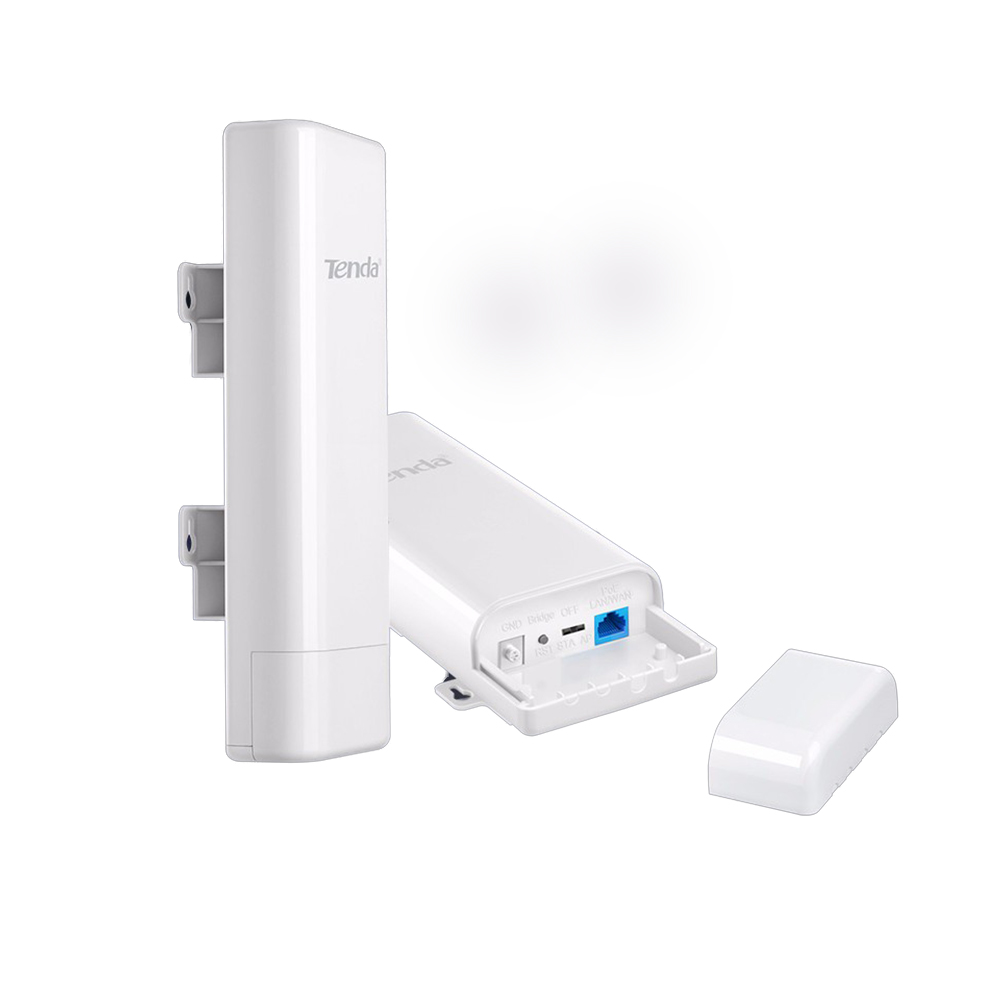

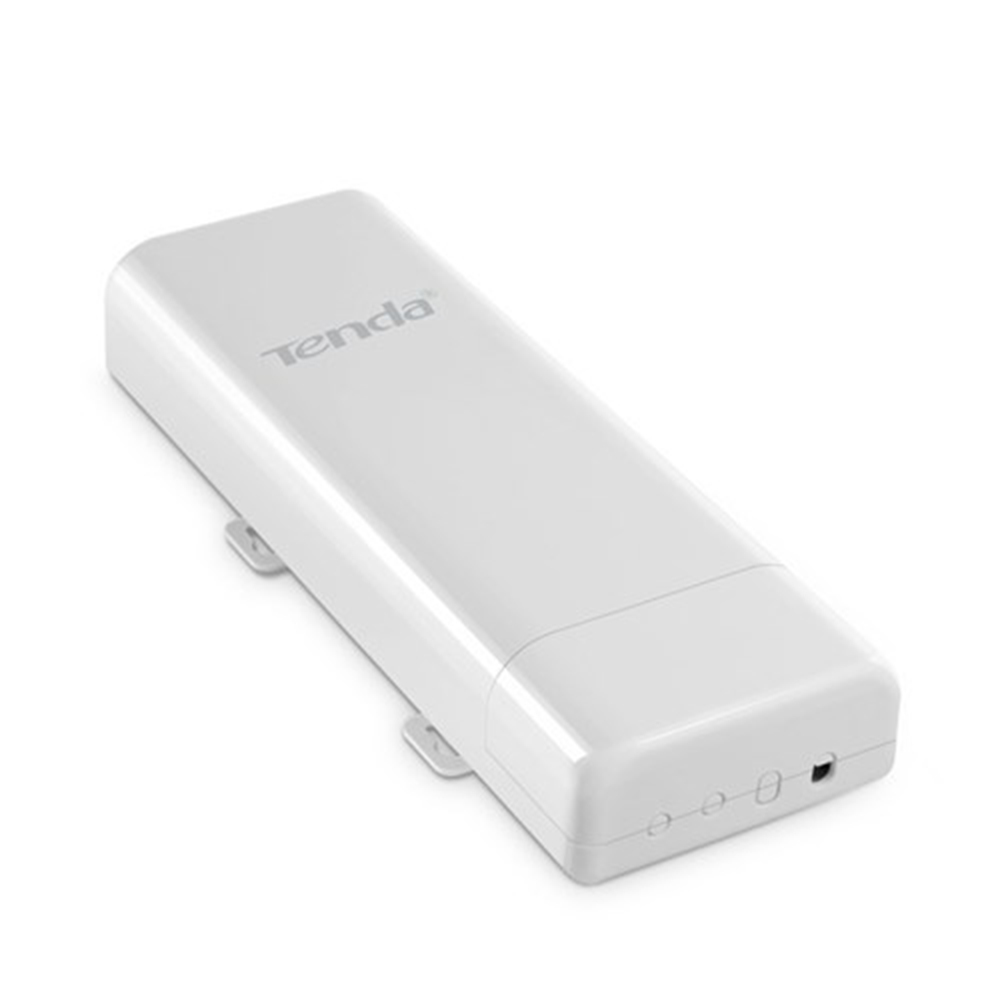

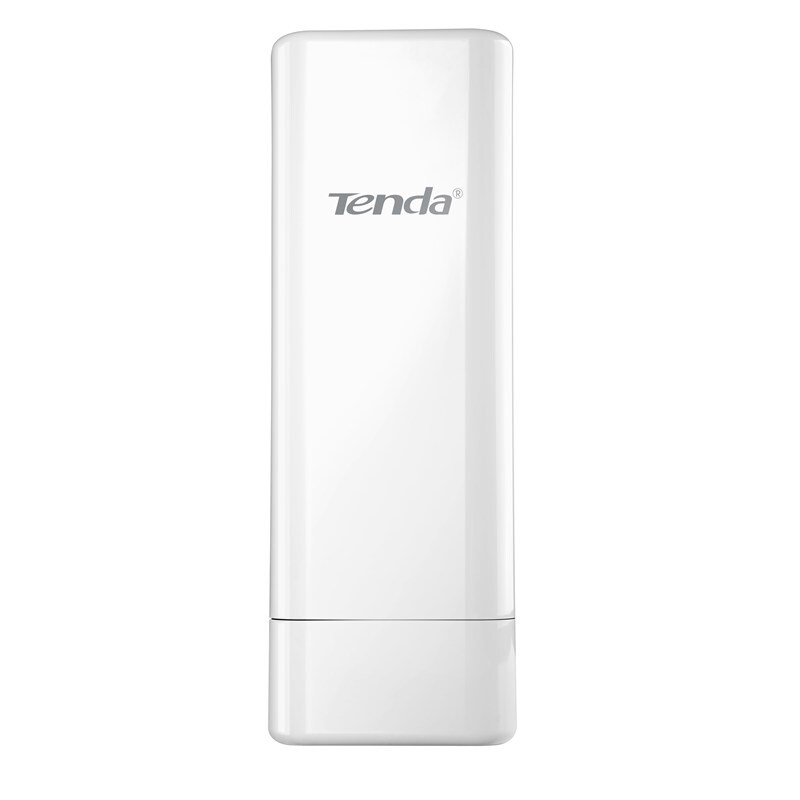

| Brand: | Tenda |
| Model: | Ο6 |
| Type: | 10km 5Ghz Outdoor Point To Point CPE |
| Dimensions: | 270×94.86×67.5mm |
| Frequency Range: | 5GHz |
| Maximum wireless speed: | 433Mbps |
| CPU Processor: | Broadcom 800MHz |
| GND Terminal: | 1 |
| Interface: | 1xGE PoE/WAN/LAN port |
| Mode Switch: | Station: The device only work in Station mode / Off: The device work on / AP/Station/Universal Repeater/WISP/Router mode / AP: The device only work in AP mode |
| Button: | Reset: Press 10 seconds or more to restore to default settings / Bridge: Press 3 seconds and release it to bridge uplink AP |
| Antenna: | 16dbi Directional Antenna |
| Antenna Bandwidth: | Horizontal: 30° / Vertical: 15° |
| Maximum Consumption: | 9W |
| Lightning Protection: | 6KV |
| Waterproof Level: | IP64 |
| LED: | LAN / LED1 / LED2 /LED3 |
| Power Supply: | 24v 0.5A PoE Injector |
| Operating mode: | AP/Station/Universal Repeater/WISP/Router |
| Standard & Protocol: | IEEE 802.11ac/n/a |
| Wireless Security: | 64/128 WEP / WPA-PSK / WPA2-PSK / WPA&WPA2-PSK / WPA / WPA2 |
| Transmit Power: | Adjustable power by 1dBm |
| Reception Sensitivity: | MCS0: -90dbm / MCS7: -72dbm |
| DHCP Server: | DHCP Server / Clients list |
| VPN Pass-through: | PPTP / L2TP |
| Ping Watchdog: | Supported |
| Speed Test: | Supported |
| Remote Web access: | Supported |
| Schedule Reboot: | Supported |
| Page Timeout: | Supported |
| Dyndns: | noip / dyndns.org |
| Network Diagnoses: | Ping / Traceroute / Signal Scan |
| Management Tool: | Time & Date Setting / System Log / Firmware update / Backup/Restore / Configuration / Username Managerment |
| Temperature: | Operating Temperature:-20℃ ~ 55℃ / Storage Temperature:-40℃ ~ 70℃ |
| Humidity: | Operating Humidity:10%~90% non-condensing / Storage Humidity:10%~90% non-condensing |
| Default Settings: | IP Address: 192.168.2.1 / Login Username:admin / Login Password:admin |
| Certification: | FCC/CE/RoHS |
| Warranty | 2 Years |
