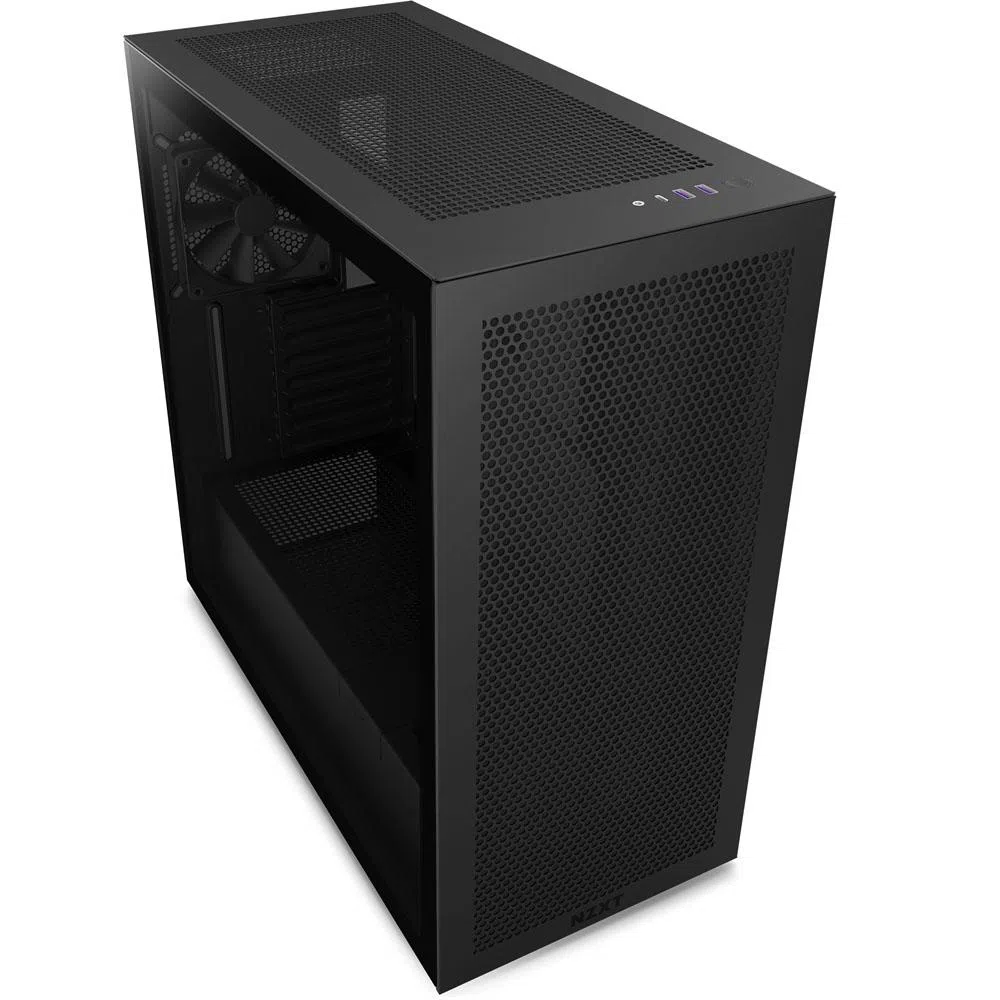

NZXT H7 Flow – CM-H71FB-01 – ATX Mid Tower PC Gaming Case – Front I/O USB Type-C Port – Black

KEY SPECS

Motherboard Support:  Mini-ITX, Micro-ATX, ATX

Enclosure Type:  Mid-Tower Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

Height:  505mm (With Feet)

Width:  230mm

Depth:  480mm

Weight:  10.05 kg

COMPATIBILITY & CLEARANCE

Max CPU Cooler Clearance:  Up to 185mm

Max GPU Clearance:   Up to 400mm

Front Radiator Clearance:  60mm

Top Radiator Clearance:  30mm

Cable Management:  18-22mm

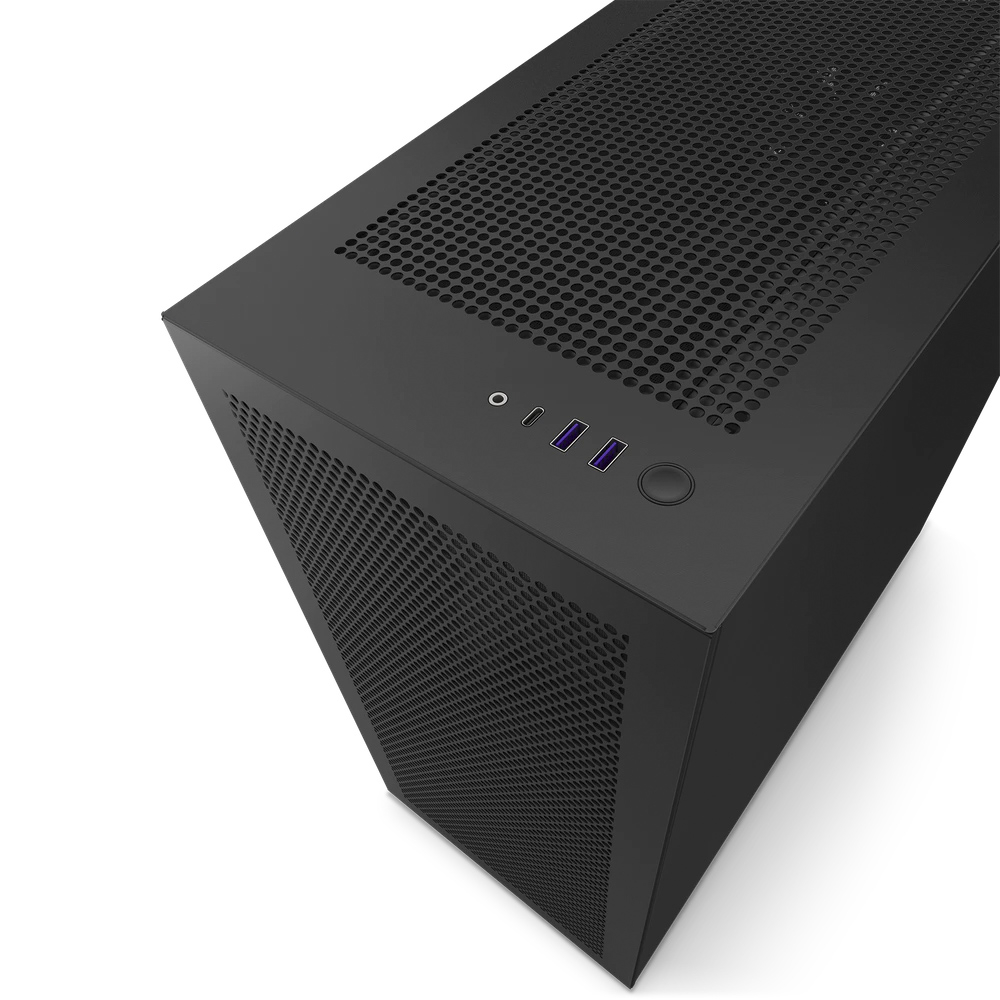

FRONT I/O PORTS

USB 3.2 Gen 1 Type-A:  2

USB 3.2 Gen 2 Type-C:  1

Headset Audio Jack:  1

EXPANSION SLOTS

Standard:  7

Vertical:  0

DRIVE BAYS

2.5″:  4+2

3.5″:  2

FAN SUPPORT

Front:  3 x 120mm / 3 x 140mm

Top:   3 x 120mm / 2 x 140mm

Rear:   1 x 120mm / 1 x 140mm

Filters:  All Air Intakes

RADIATOR SUPPORT

Front:  Up to 360mm with Push/Pull

Top:   Up to 360mm

Rear:  Up to 140mm

FAN SPECS

Model:  F120Q (Case Version)

Speed:  1200 ± 240RPM

Airflow:  62.18 CFM

Static:  1.05 mm – H2O

Noise:  25.1 dBA

Fan Connector:  3-pin

GENERAL

Warranty:  2 Years

Model Number:  CM-H71FB-01 (Black)
