SPECIFICATIONS
| Brand: | Asus |
| Model: | Prime Z590-P |
| Type: | ATX |
| BIOS type: | UEFI AMI |
| BIOS Memory Size: | 192 Mbit |
| Clear CMOS Jumpers: | Yes |
| Processor Manufacturer: | Intel |
| Processor Socket: | LGA 1200 |
| Compatible Processors: | Intel Core i11 /Intel Core i10 |
| Supported RAM: | DDR4 |
| Number Of Memory Slots: | 4 |
| RAM Type: | DIMM |
| Memory Channels: | Dual-channel |
| Supported Memory Speed: | 2133/2400/ 2666/ 2933/ 3000/ 3333/ 3400/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4133/4266/ 4400/ 4500/ 4600/4700/ 4800/ 5000/5133 MHz |
| RAM Memory Maximum: | 128 GB |
| Supported Storage Drives: | SSD |
| RAID Level: | 0/ 5/ 10 |
| Maximum Resolution: | 4096 x 2304 pixels |
| Internal I/O Connections: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header |

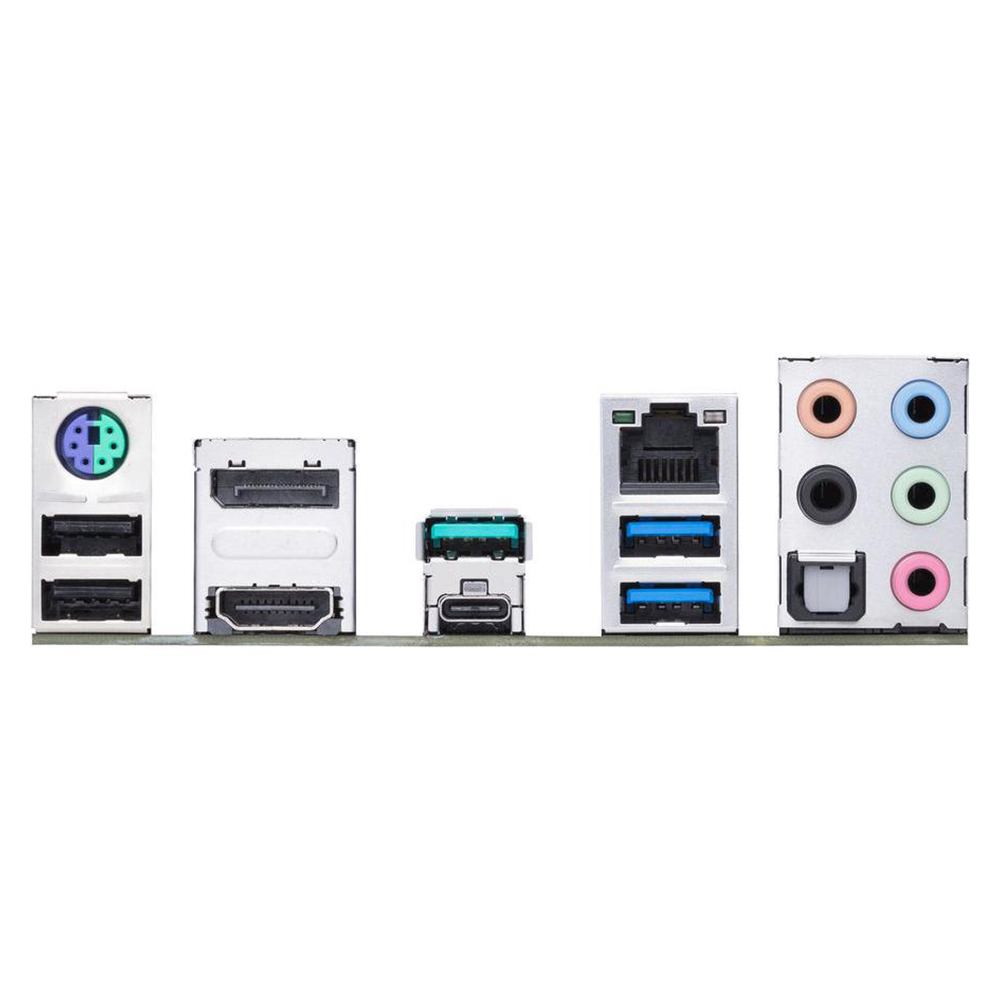

| I/O Ports On The Back: | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port |
| Motherboard chipset family | Intel |
| Motherboard chipset: | Z590 |
| Audio channels: | 7.1-channel |
| PC health monitoring: | DIGI+ VRM (- Digital power design with DrMOS) LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O |
| Expansion Slots: | Intel 11th & 10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)/ 2 x PCIe 3.0 x1 slots |
| Warranty: | 2 Years |
