SPECIFICATIONS
| Brand: | Asrock |

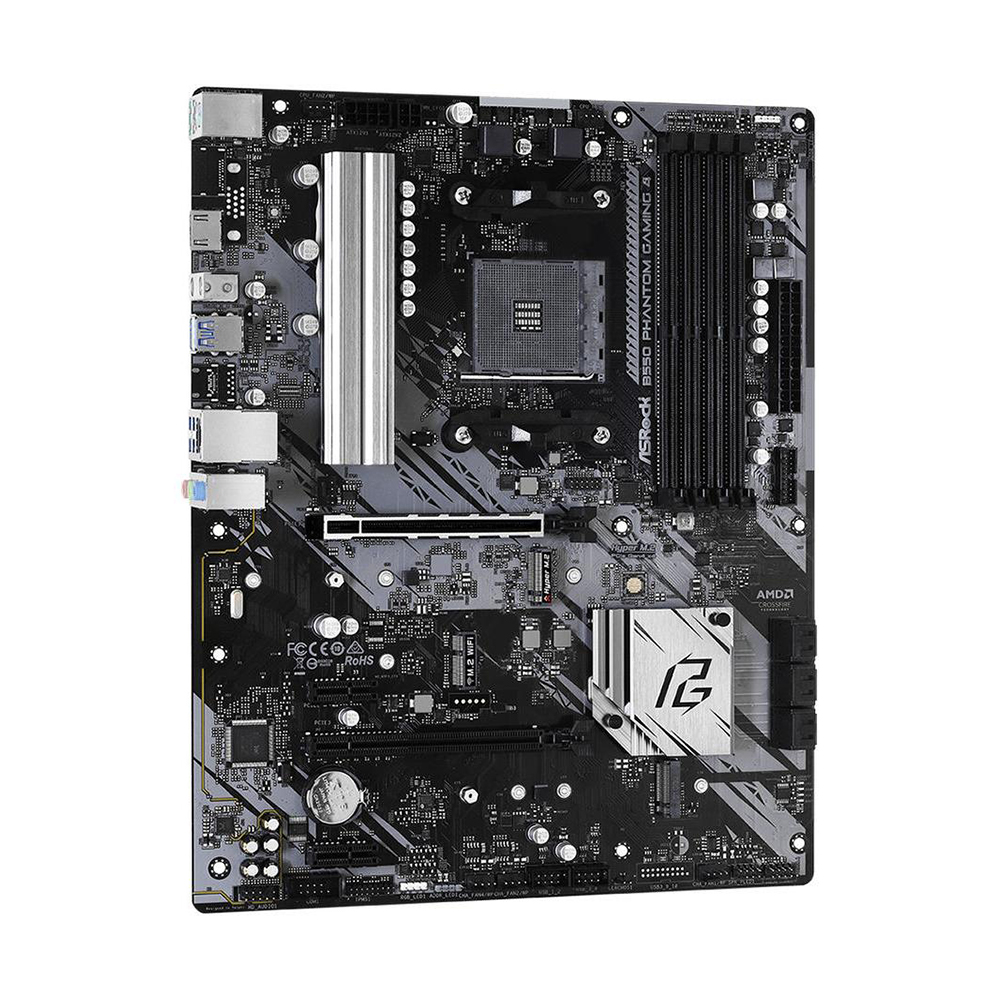

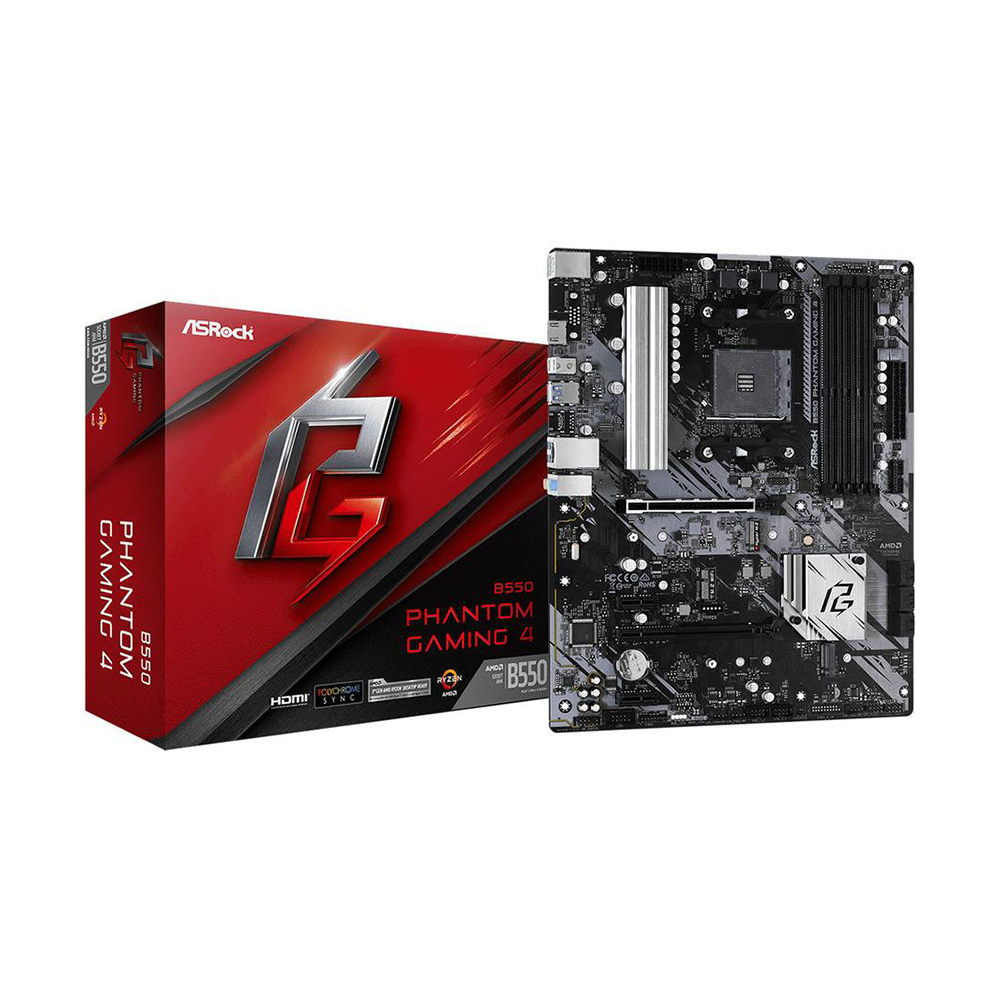

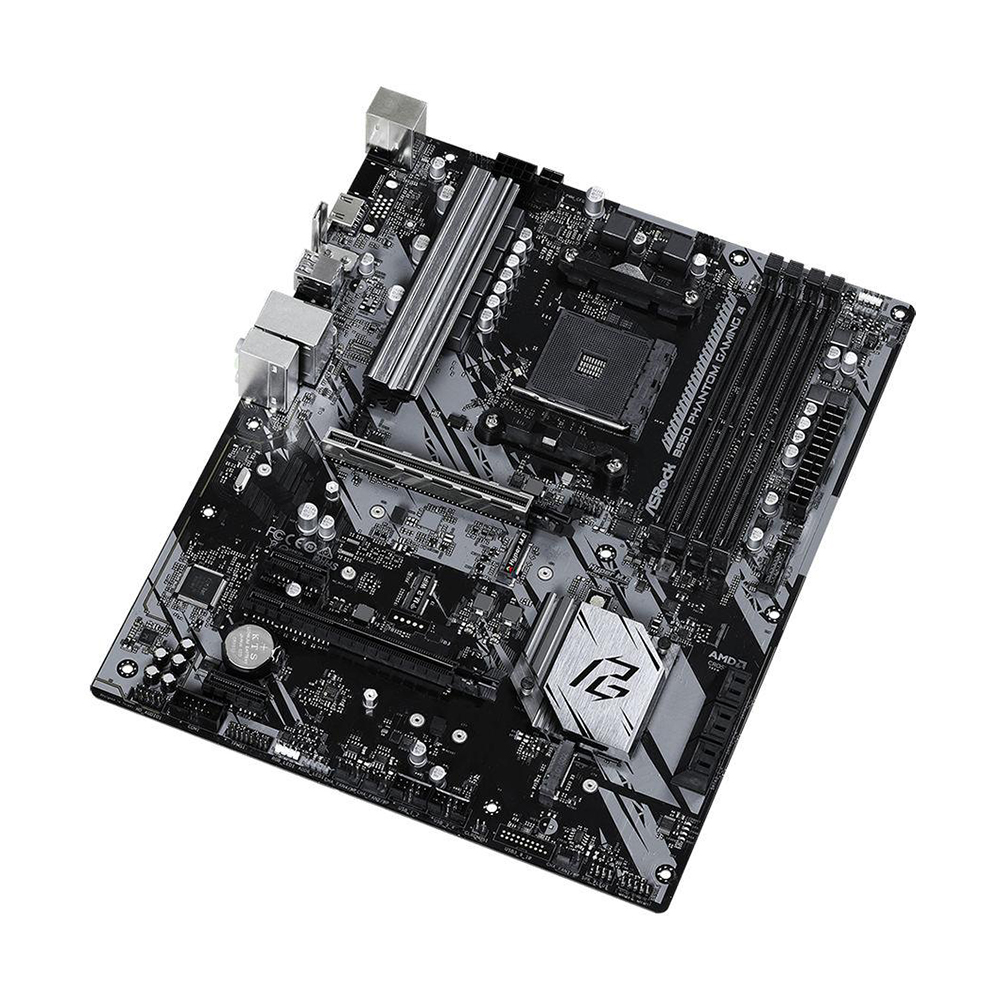

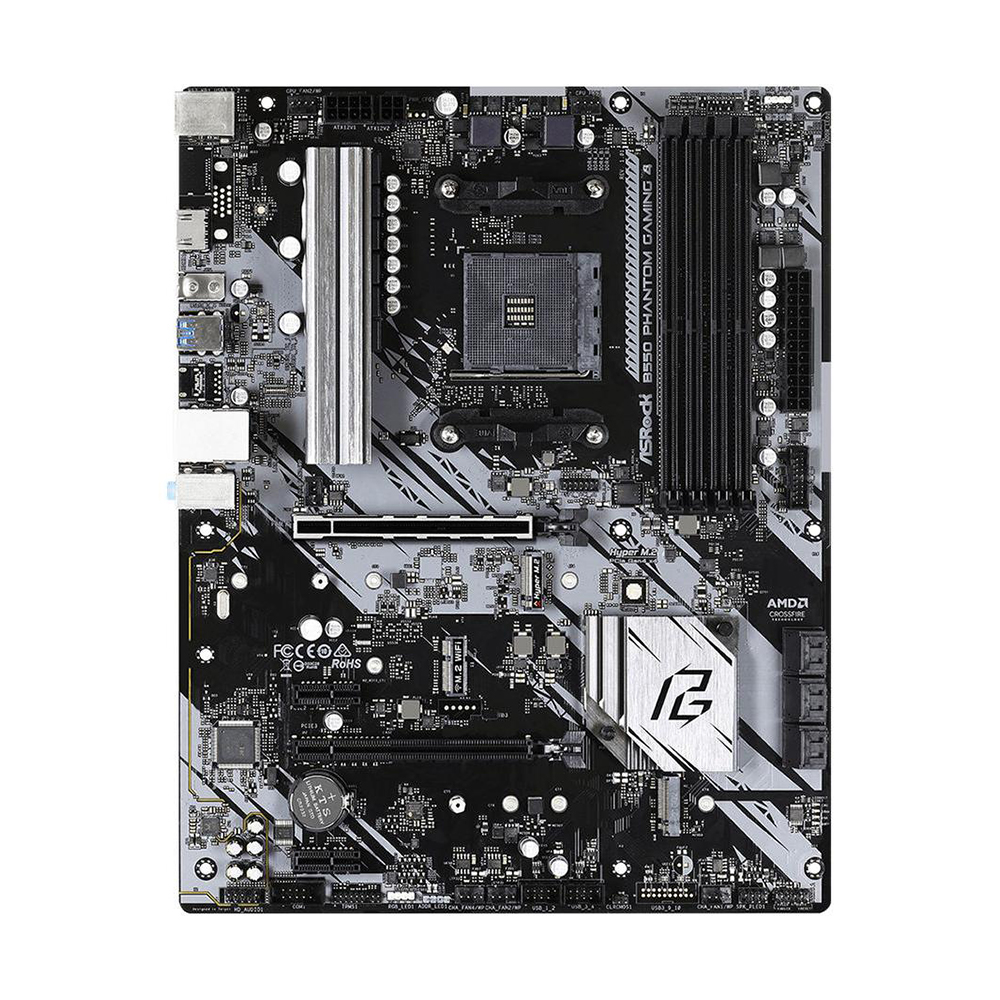

| Model: | B550 Phantom Gaming 4 |
| Type: | ATX |
| BIOS Type: | UEFI |
| Processor Manufacturer: | AMD |
| Processor Socket: | Socket AM4 |
| Compatible Processors: | AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 |
| Maximum Number Of SMP Processors: | 1 |
| Supported RAM: | DDR4 SDRAM |
| Number Of Memory Slots: | 4 |
| RAM Type: | DIMM |
| Memory Channels: | Dual-channel |
| ECC: | Yes |
| Without ECC: | Yes |
| Supported Memory Speed: | 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533 MHz |
| RAM Memory Maximum: | 128GB |
| Supported Storage Drive Interfaces: | M.2, SATA III |
| RAID Level: | 0.1.10 |
| Number Of USB 2.0 Interfaces: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Ports: | 1 |
| Audio Connection: | Yes |
| Front Panel Audio Connector: | Yes |
| ATX Power Plug (24-pin): | Yes |
| CPU Fan Connector: | Yes |
| Number Of Molex Connections 4pin: | 4th |
| EPS Power Connector (8-pin): | Yes |
| Number Of COM Plugs: | 1 |
| Number f USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: | 6th |
| Number of Ethernet LAN Connections (RJ-45): | 1 |
| Number Of PS / 2 Connections: | 1 |
| Microphone Input: | Yes |
| Built-in Ethernet Connection: | Yes |
| Ethernet Interface Type: | Gigabit Ethernet |
| LAN Controller: | Realtek RTL8111H |
| Wake-on-LAN Ready: | Yes |
| Component For: | PC |
| Motherboard Form Factor: | ATX |
| Motherboard Chipset Family: | AMD |
| Motherboard Chipset: | AMD B550 |
| Audio Channels: | 7.1 channels |
| Warranty: | 2 year |
