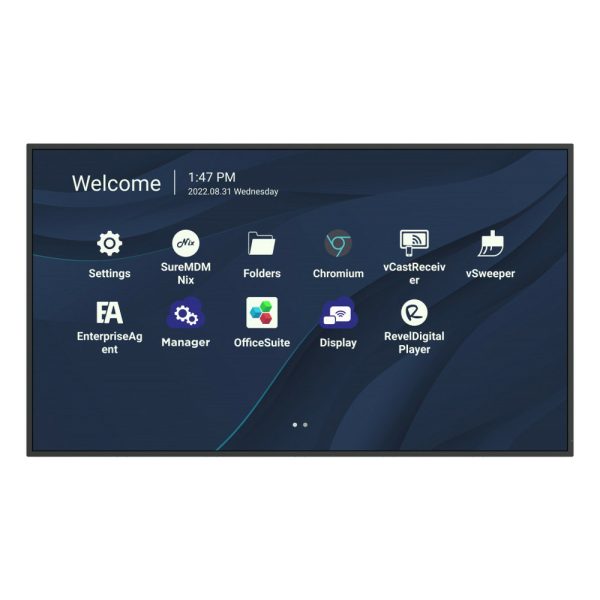

Viewsonic 43" 4K Commercial LED Display 24/7 Playback myViewBoard CDE4330 Original price was: €773,00.Current price is: €699,00.
Click to enlarge

Mercury Cat7 S/FTP LSZH Network Cable 305m 808.050UK

€349,00

  • Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel

1 in stock

Add to wishlist
Compare
SKU: 808.050UK Categories: , Tags: , , , ,
Description

SPECIFICATIONS

  • Conductor: Solid OFC
  • Conductor diameter: 0.560±0.005mm
  • Cable diameter: 7.2±0.5mm
  • Screen: Aluminium/Mylar foil
  • Braid material: Aluminium magnesium alloy
  • Insulation: PE 1.30±0.05mm
  • Sheath: LSZH 0.50±0.05mm
  • Capacitance: <330pf/100m
  • DC resistance @ 20°C: <9.38 Ohms/100m
  • Impedance (1 to 100MHz): 100±15?
  • Impedance (100 to 250MHz): 100±18?
  • Impedance (250 to 600MHz): 100±25?
  • Return loss: >20.95dB
  • Attenuation: <1.92dB
  • NEXT: >81.17dB
  • Phase delay: <426.34ns
  • PSNEXT: >81.07dB
  • ELFEXT: >58.61dB
  • PSELFEXT: >55.88dB
  • Colour: Orange
  • Weight: 17.5kg
Additional information
Brand

Kuwes
Length

100M
Category

CAT6
