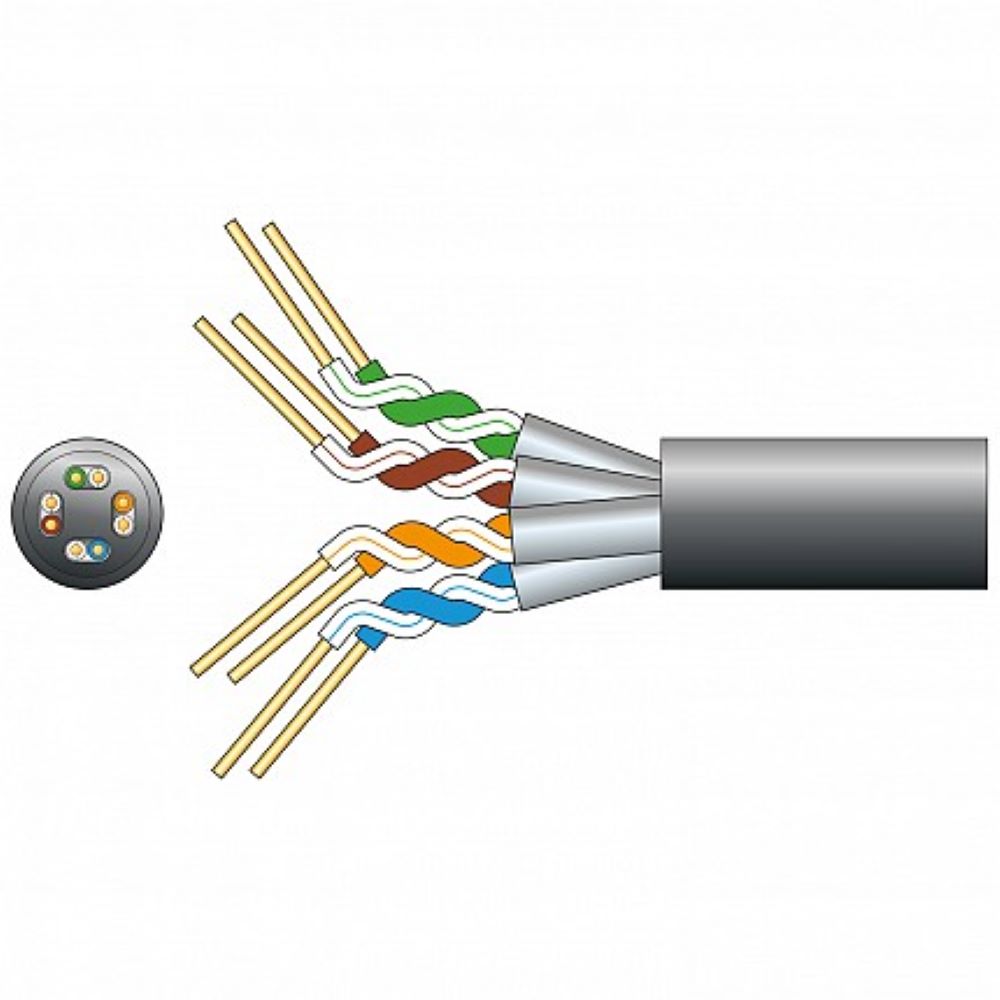

Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK

Original price was: €325,00.Current price is: €309,00.

  • AWG 23 oxygen free solid copper conductor
  • LDPE sheath with UV resistant properties ideal for outdoor installations
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6a fluke test 100m at 500MHz
  • Complies to TIA/EIA-568 Cat6a standard

1 in stock

Add to wishlist
Compare
SKU: 808.034UK Category: Tags: , , , , , ,
Description

SPECIFICATIONS

    • Conductor: Solid OFC
    • Strands: 8 x 1/0.560mmØ ±2%
    • Cable : diameter7.3±0.5mm
    • Screen: Aluminium/Mylar foil
    • Insulation: PE 1.330±0.05mmØ
    • Sheath: LDPE 0.55±0.05mm thickness
    • Capacitance: <330pf/100m
    • DC resistance @ 20°C: <9.38 Ohms/100m
    • Impedance (100 to 250MHz): 100±15 Ohms
    • Impedance (250 to 500MHz): 100±22 Ohms
    • Return loss: >26.62dB
    • Attenuation: <2.03dB
    • NEXT: >87.2dB
    • PSNEXT: >85.15dB
    • ELFEXT: >88.77dB
    • PSELFEXT: >86.74dB
    • Phase delay:<450.79ns
    • Colour: Black
    • Length: 305m
    • Weight: 17.4kg
Additional information
Brand

Mercury
Length

350M
Category

CAT6
