SPECIFICATIONS
Connectors

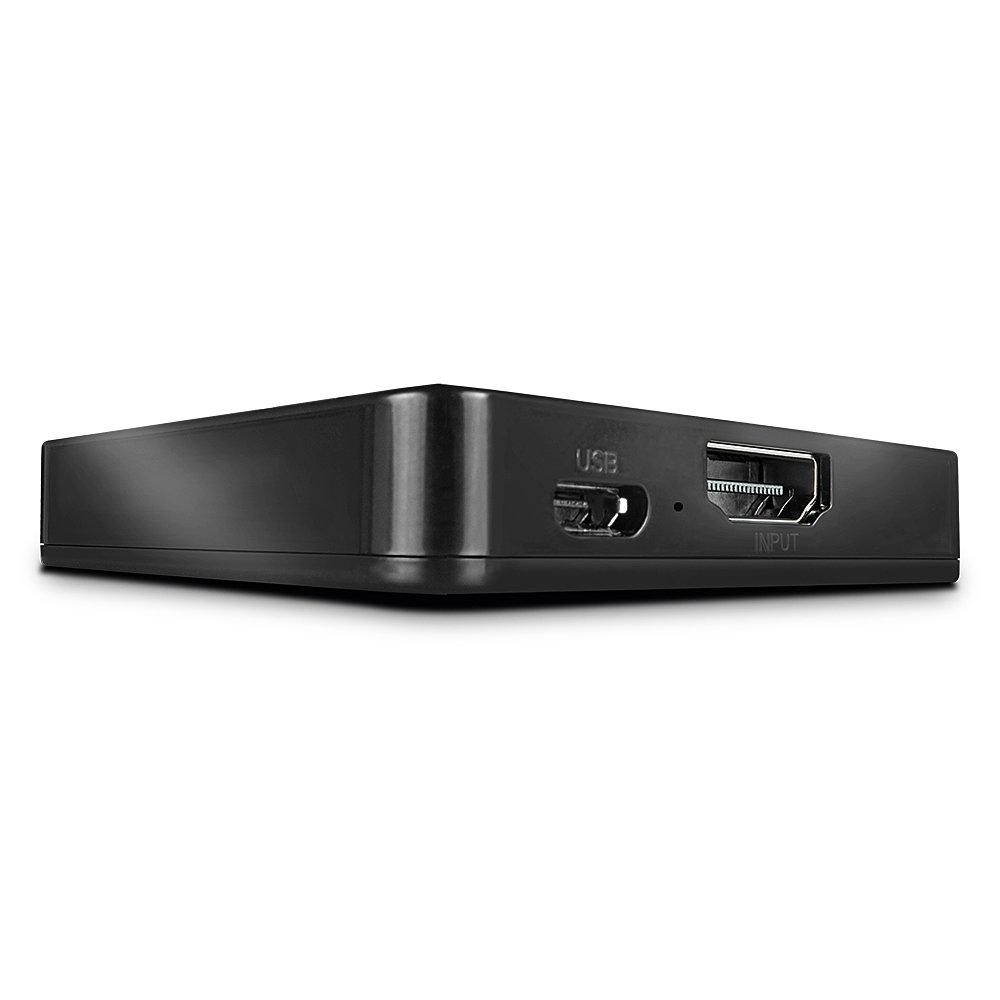

- Input: 1 x HDMI Type A 19 Pin Male

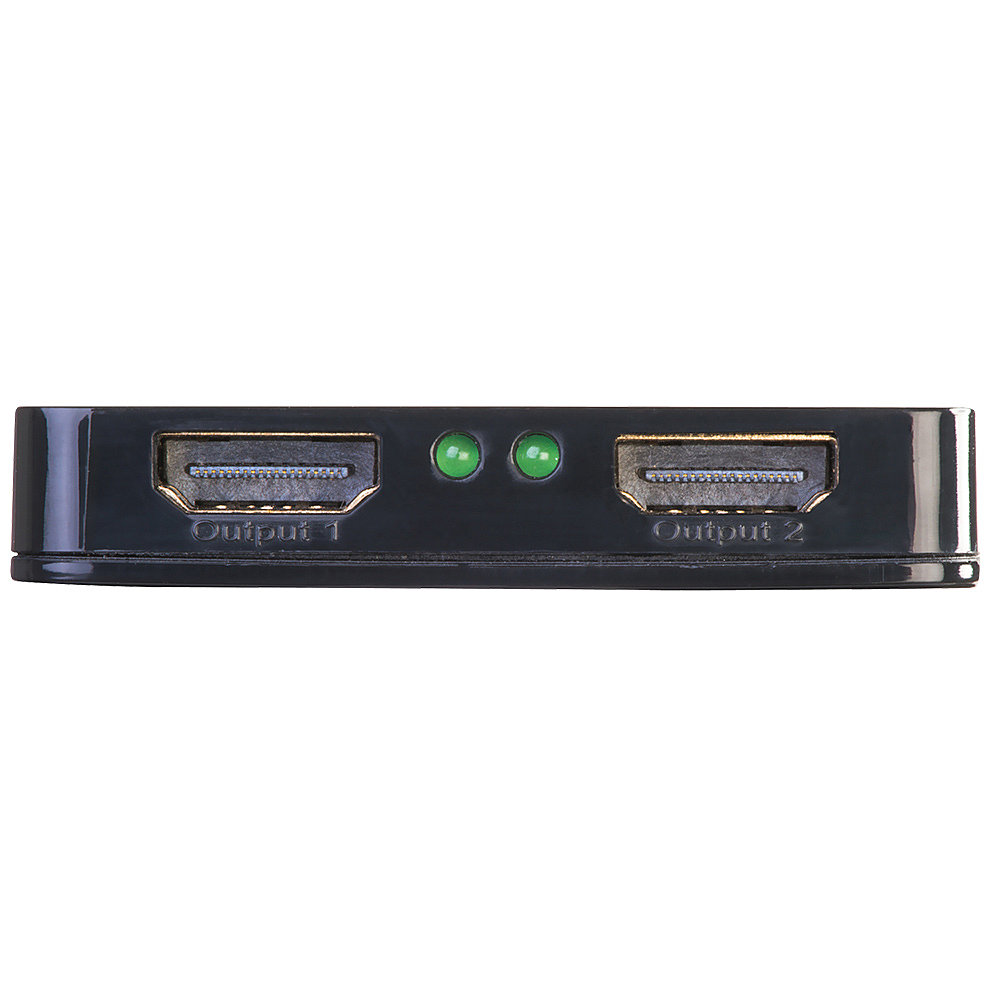

- Output: 2 x HDMI Type A 19 Pin Male
- Power: USB Type Micro B
Housing
- Material: ABS plastic
- LED Indicators: Power, Active HDMI Port
- Colour: Black
- Power Requirements: 5V DC 350mA
- Dimensions: 63 x 52 x 12mm (WxDxH)
Technical Information
- Supported Bandwidth: 340MHz / 10.2Gbps
- Maximum Resolution: 4096 x 2160p 30Hz including 1080p 3D
- Maximum Colour Depth: 36 bit (12 bit per channel)
- Supported Audio: 7.1 channel of LPCM, Dolby TrueHD and DTS-HD Master Audio digital audio signals
- Infrared support: NA
- Remote control: NA
- Weight: 0.030kg
- Chipset: Lontium LT8610EX
- PSU Included: No
- Working power consumption: 1.75w
- Idle power consumption: 0.5w
- Operating Temperature: -15° – 55°C
- Storage Temperature: -20° – 80°C
- Country of Origin: China
Compliance
- HDMI: V1.4
- HDCP: V1.4
- CE: Compliant
- FCC: Compliant
- RoHS 2.0: Compliant
