SPECIFICATIONS
| Brand: |
LC-Power |
| Model: |

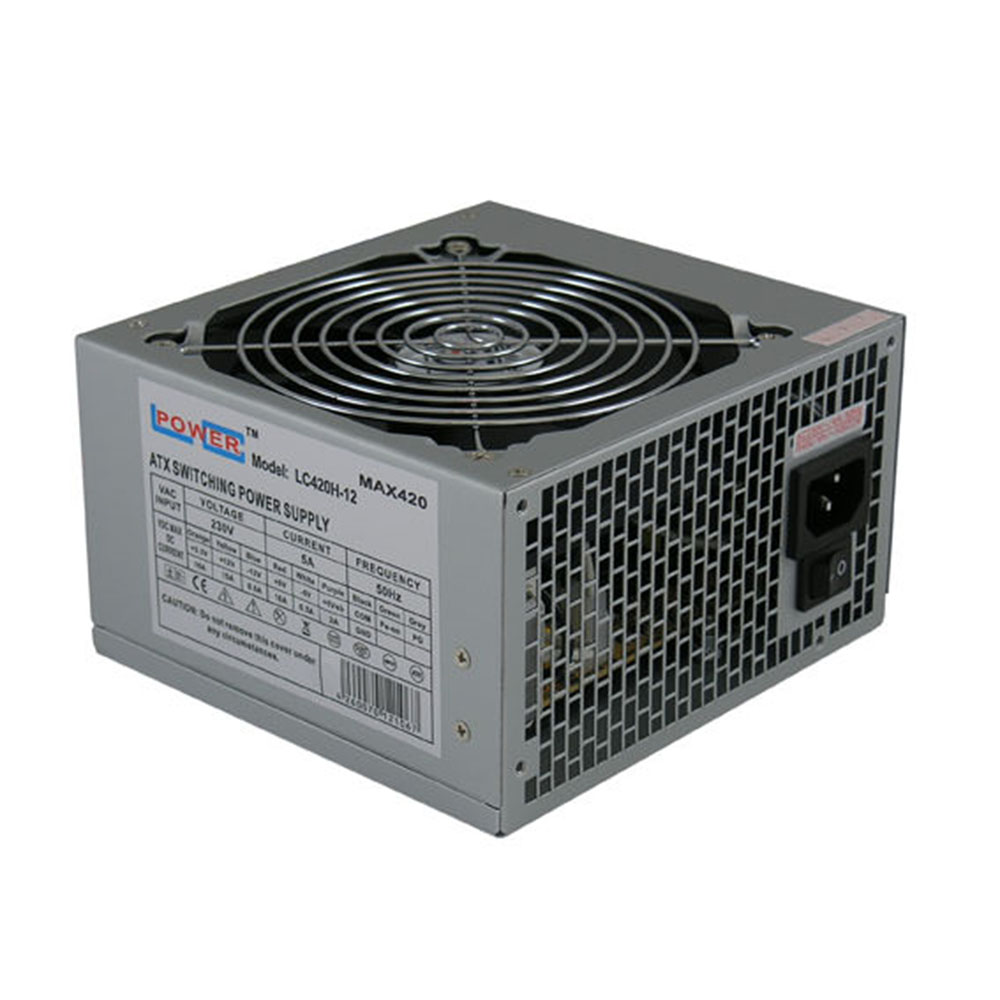

LC420H-12 V1.3 |
| Type: |
Power Supply Office Series |
| ATX Standard: | ATX V1.3 |
| Connectors: | 1 x 20+4 pin mainboard / 1 x 4 pin mainboard 12V |
| SATA: | 4 (2x 45 / 2x 60 cm) |
| PATA: | 2 (2x 75 cm) |
| FDD: | 1x 90 cm |
| Fan: | 120 mm |
| PFC: | Passive |
| Power Rating: | 420W max. / peak |
| +3,3V: | 16A |
| +5V: | 16A |
| -5V: | 0,5A |
| +12V: | 15A |
| Standby Consumption: | 0,26W – ErP 2013 |
| Temperature Control For Case Fan: | Yes |
| Security Circuitry | OVP /OPP / SCP / UVP |
| Full Range (110V/220V): | No |
| Haswell Compatible: | Yes |
| Weight (retail): | 1,412 kg |
| Dimension (H x W x D) | 87 x 150 x 140 mm |
| Warranty: | 2 years |
