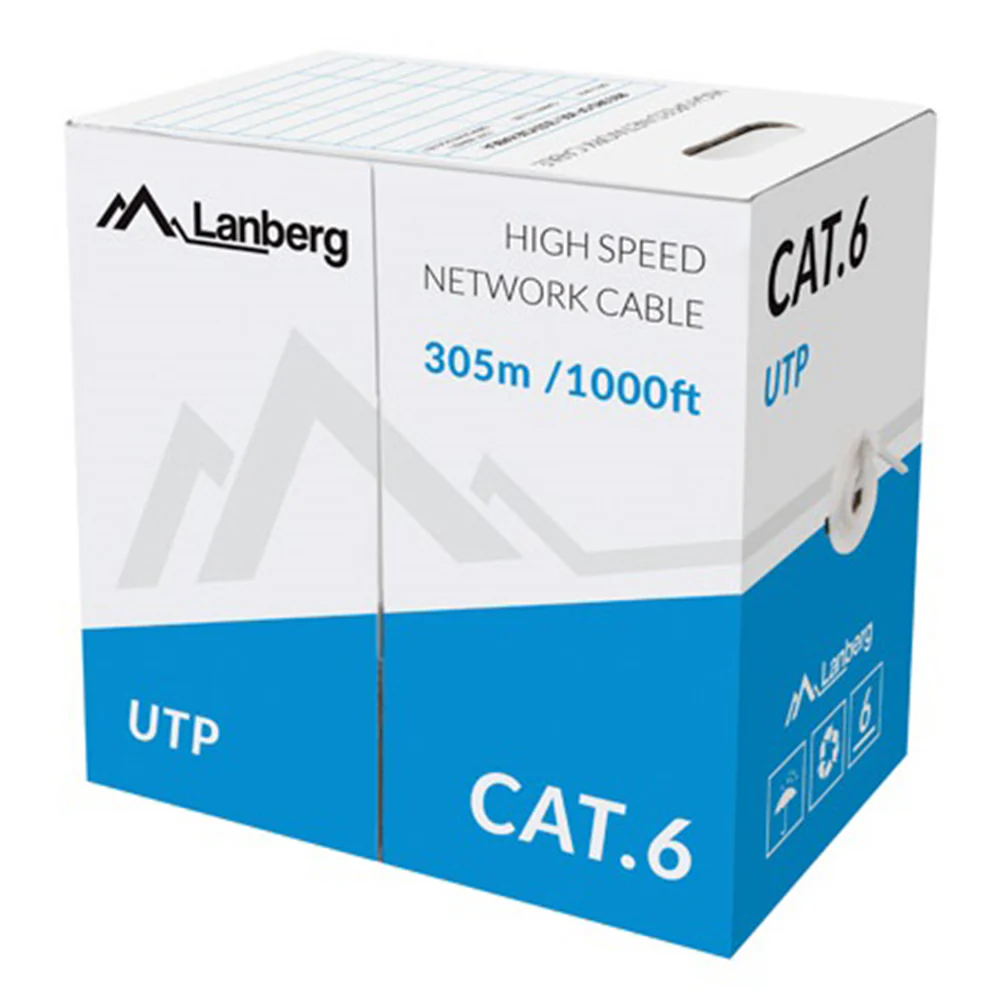

Lanberg LCU6-10CC CAT6 UTP CCA Cable 305m Grey

• LAN cable category 6 UTP (unshielded)
• Length 305m
• The wires are made of copper clad aluminium (CCA)
• AWG 23 (4*2*0.57mm)
• Conductor stranding: single wire
• Color: grey RAL7035
• Printed length counter at every meter of cable
• External PVC insulation: 5.6mm
• HDPE conductor insulation: 0.95mm
• Operation up to 250Mhz
• Compatibility with standards: ANSI/TIA/EIA-568&ISO/IEC 11801
• Package: cardboard box
• Packaging dimensions (W x D x H): 38x24x38 cm

Electrical characteristics (20 degrees):

• Conductor resistance (max.): 60 – 90Om / 305m
• Insulation resistance (min.): 5000mOm km
• Pair-to-Ground capacitance: < 330PF / 100m
• Characteristic impedance: < 100Om (+/- 15)
• Transport and storage temperature: 0 – 60 degrees
• Operating temperature: -20 – 70 degrees
• Working distance: 100-120m
