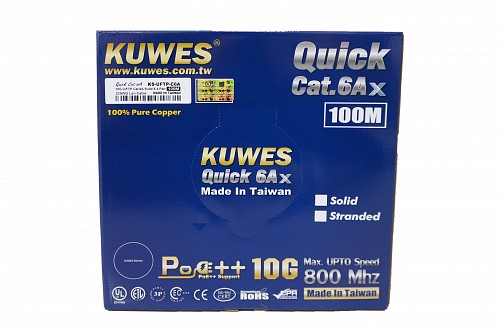

Kuwes CAT6A FTP Pure Copper Indoor 100m Grey

Conductor: Solid Bare Copper (1 x AWG23)
Insulation :

• HDPE
• Min. Avg. Thickness: 0.45 mm;
• Min. Thickness: 0.38 mm

Color Code:

• Pair 1: Blue & White
• Pair 2: Orange & White
• Pair 3: Green & White
• Pair 4: Brown & White

Shield: Aluminum-Mylar tape and Drain wire(tinned copper conductor)

Jacket:

• 75°C PVC Compound
•  Min. Avg. Thickness: 0.585 mm;
• Min. Thickness: 0.458 mm
• Approximate O.D.: 7.8 mm +/- 0.3mm

Electric Requirements: (Cable length: 100M)

• Characteristic Impedance(Zo): 85～115Ω (1～500 MHz)
• DC. Resistance Capacitance Unbalance: 3%
•  Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
•  Conductor Resistance: 7.32Ω/ 100M 20°C Max
•  Mutual Capacitance: 5600 pF/100m Max

Spark Test: Outer Jacket: 2.5KV Insulation: 1.75KV
Dielectric Strength: 1.5KV AC/2secs

•  Nominal Velocity of Propagation (NVP): 74 %

Temperature Range:

• Installation Temperature 0 to 50°C
• Storage Temperature -20 to 70°C
• Operation Temperature -10 to 60°C
