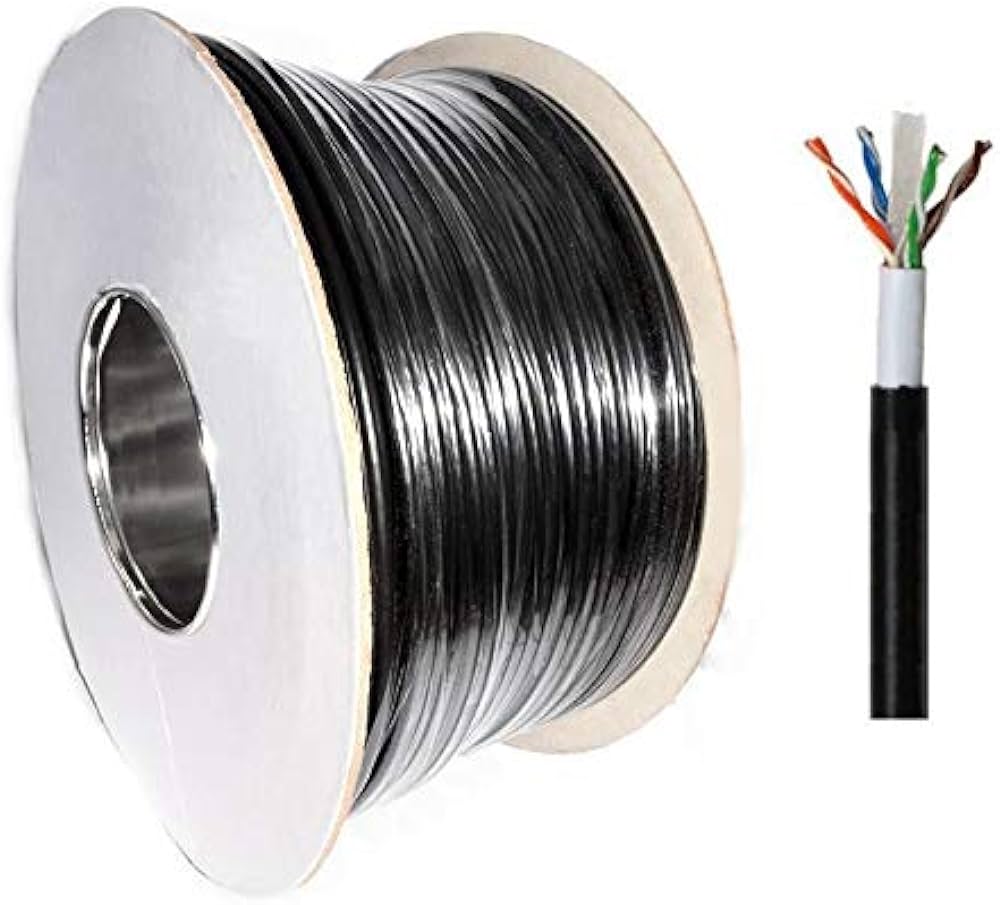

Kuwes CAT6 TURBO6E OUTDOOR Pure Copper Cable 24AWG 305m

Conductor: Solid Bare copper x 24AWG ( Turbo6e Type)

Insulation:

• HDPE
• Min. Avg. Thickness: 0.23 mm

Color Code:

• Pair 1: Blue & White/Blue;
• Pair 2: Orange & White/Orange
• Pair 3: Green & White/Green;
• Pair 4: Brown & White/Brown

Jacket:

• LDPE
• Min. Avg. Thickness: 0.6 mm;
• Min. Thickness: 0.50 mm
• Approximate O.D.: 5.7 mm +/- 0.3mm

Electric Requirements: (Cable length: 100M)

• Characteristic Impedance(Zo): 85 115 (1 500 MHZ)
• DC. Resistance Capacitance Unbalance: 5%
• Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
• Conductor Resistance:7.32 / 100M 20°C Max
• Mutual Capacitance: 5600 pF/100m Max
• Spark Test: 2.5KV
• Nominal Velocity of Propagation (NVP): 69%
