SPECIFICATIONS

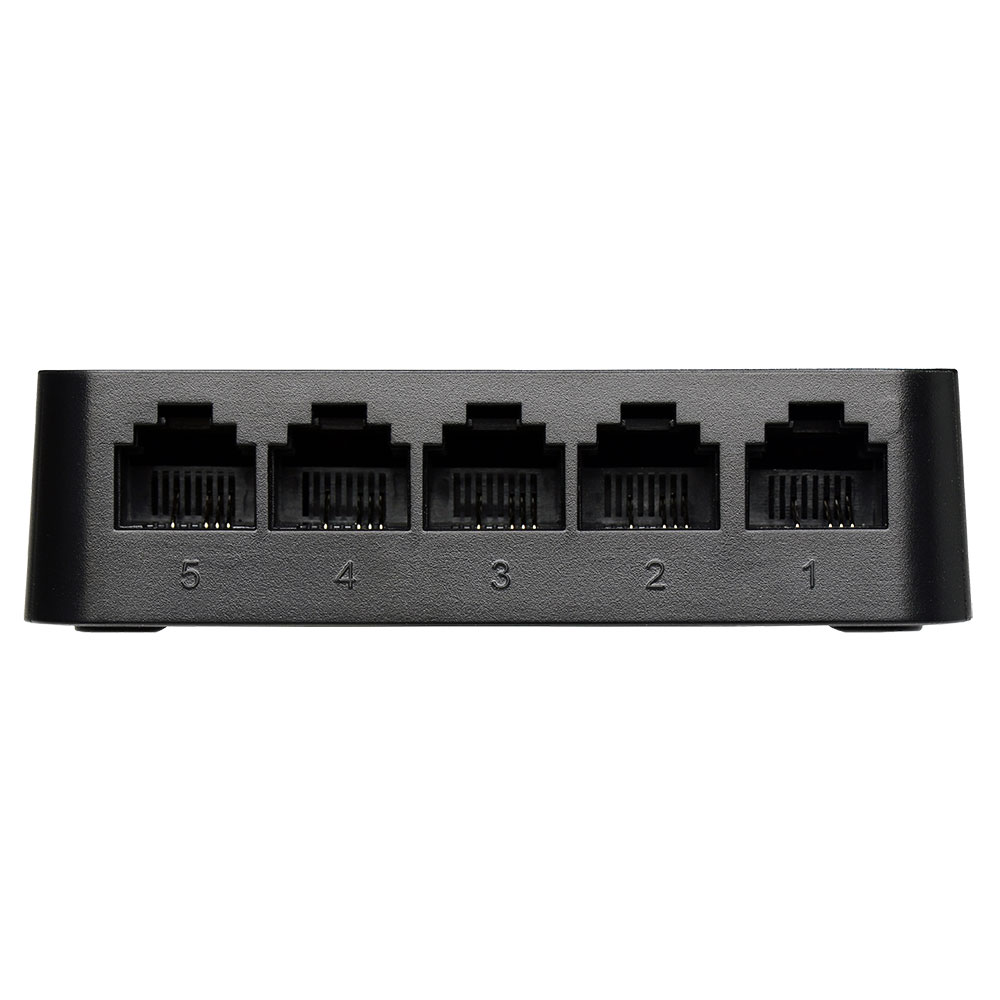

| Ports: | 5 x RJ-45 10/100Base-T ports |

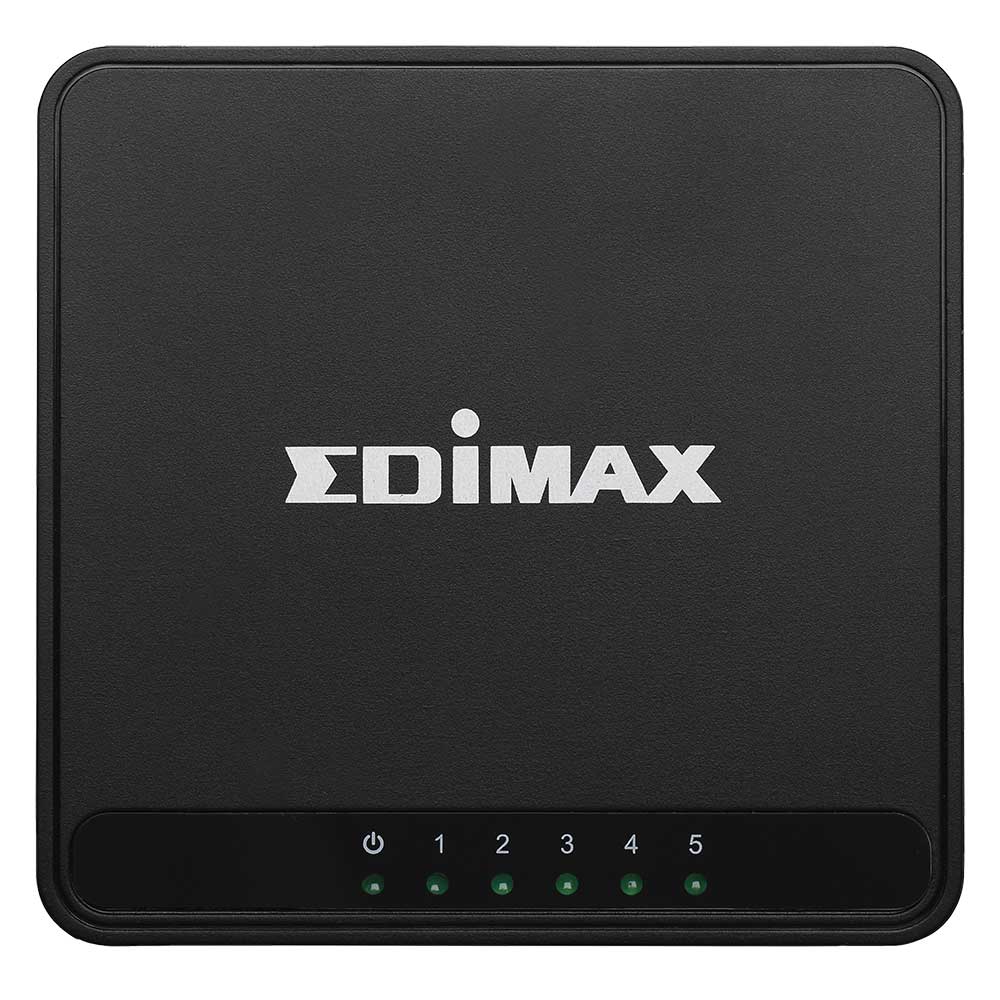

| LED Indicator: | Per Port: Link/Act | Pert Unit: Power |

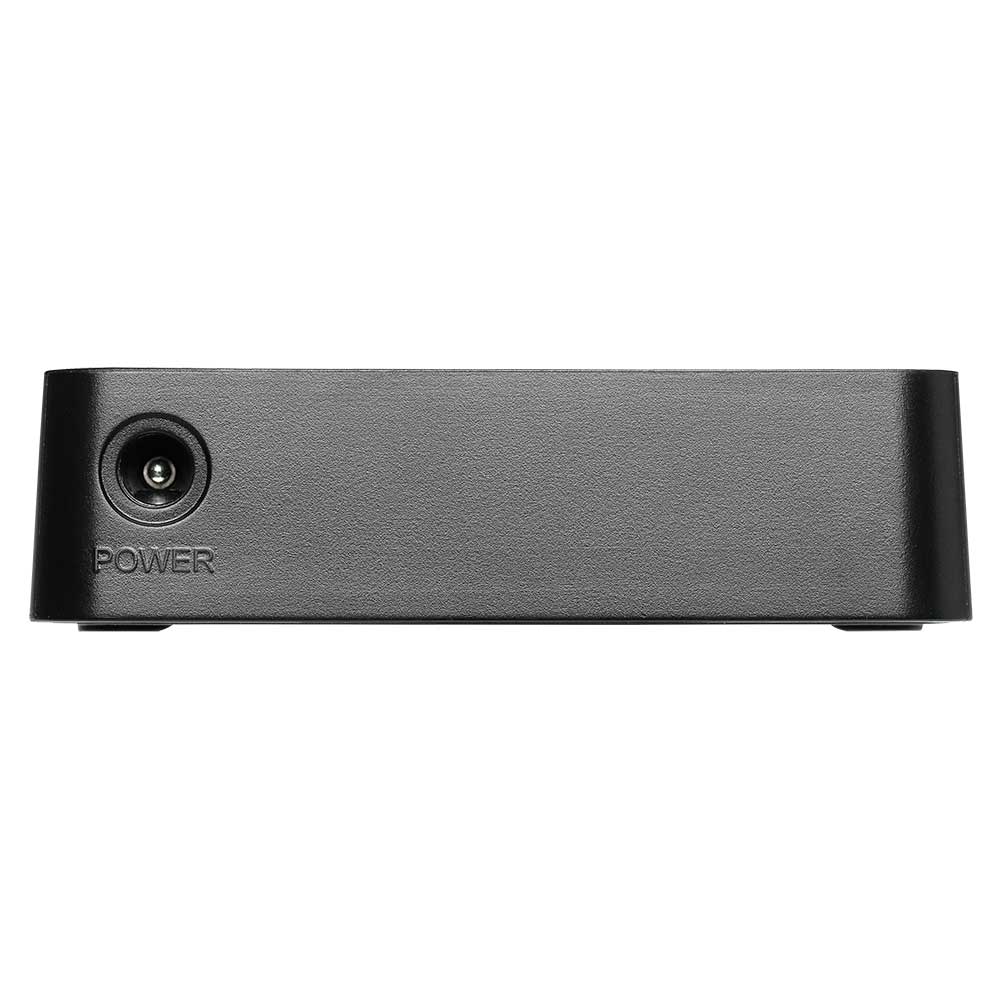

| Power Requirement: | DC 5V 0.6A |
| Power Consumption: | <2 Watts |
| Dimension: | (W x D x H) 88 x 88 x 25 mm |
| Weight: | 82g |
| Standard: | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet |
| MAC Address: | 1K |
| Buffer Memory: | 48K |
| Filtering / Forwarding Rates: | 100Mbps port – 148,800pps. 10Mbps port – 14,880pps |
| Transmission Media: | 10BASE-T Cat. 3, 4, 5 UTP/STP, 100BASE-TX Cat. 5 UTP/STP |
| Dimensions: | (W x D x H) 186 x 146 x 44mm |
| Temperature: | Operating: 0 to 40℃ Storage: -20 to 70℃ Humidity: |
| Humidity: | Operating: 10 to 90% RH (Non-condensing). Storage: 5 to 90% RH (Non-condensing) |
| Certification: | CE, FCC Class B |
