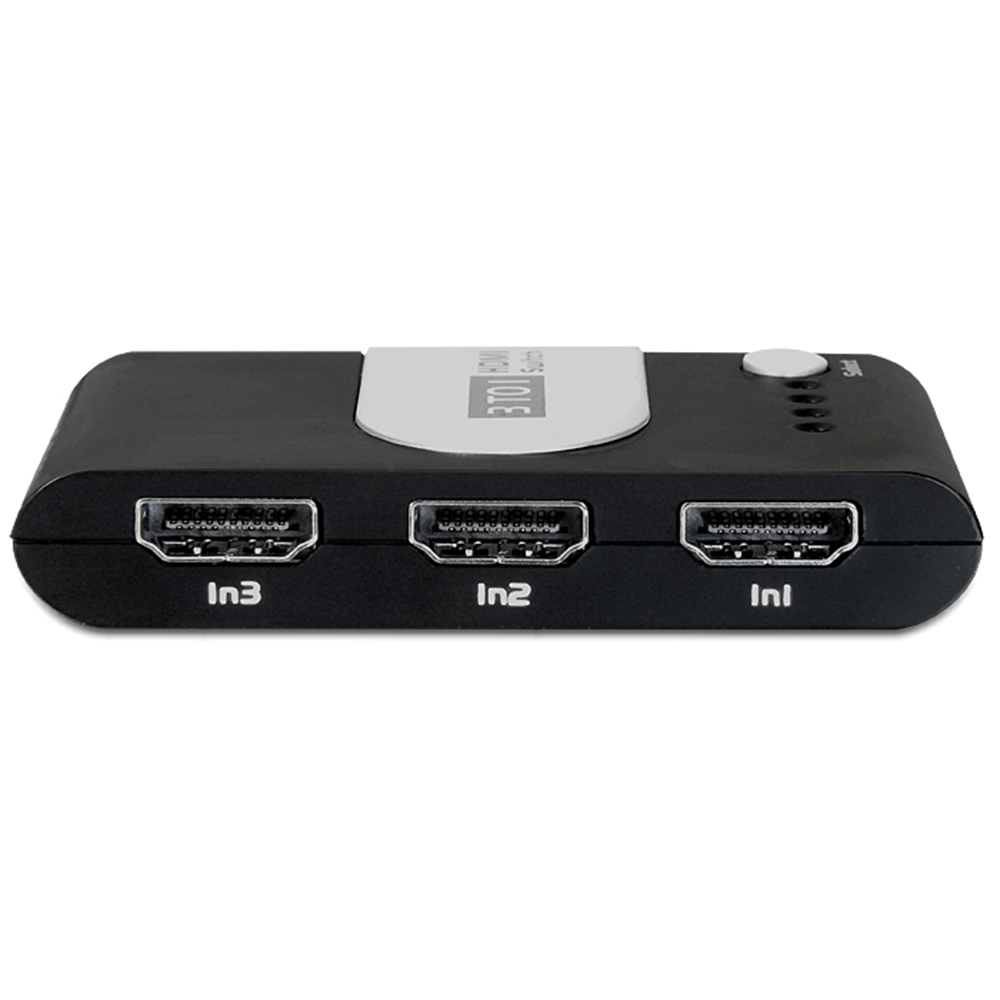

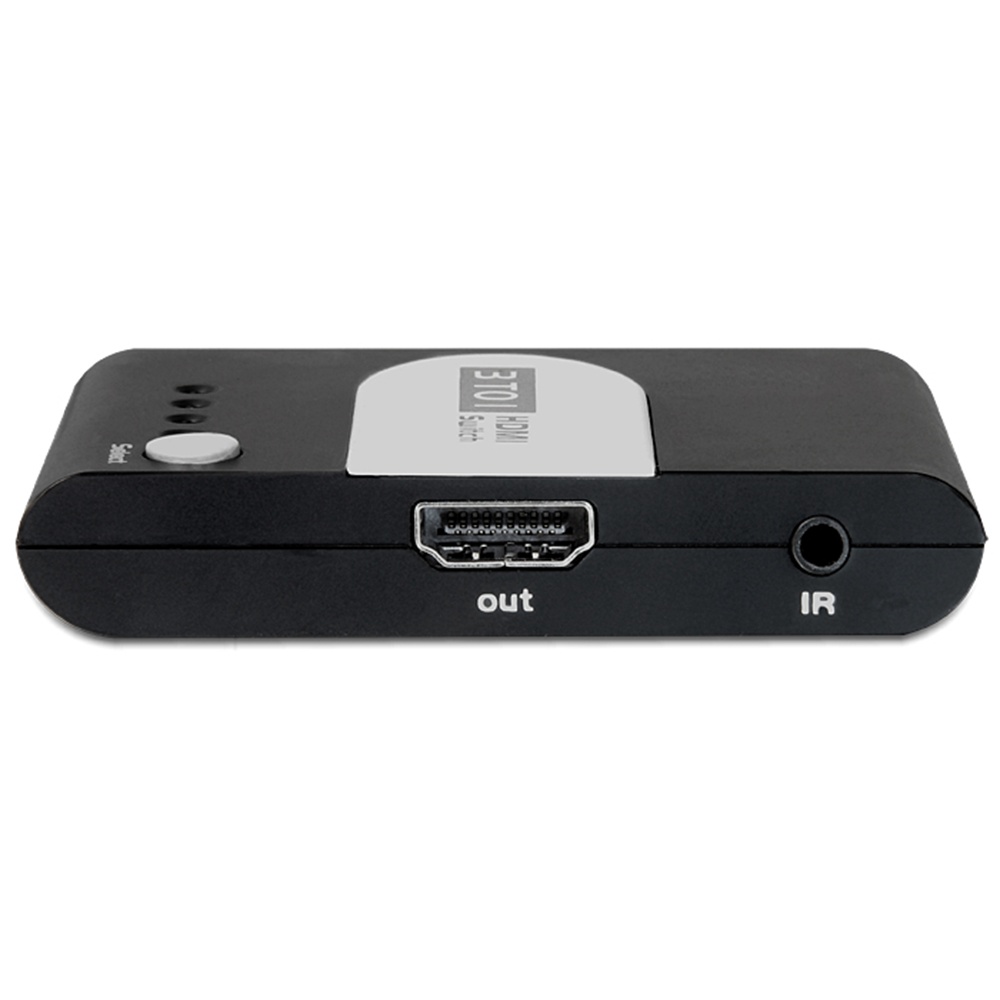

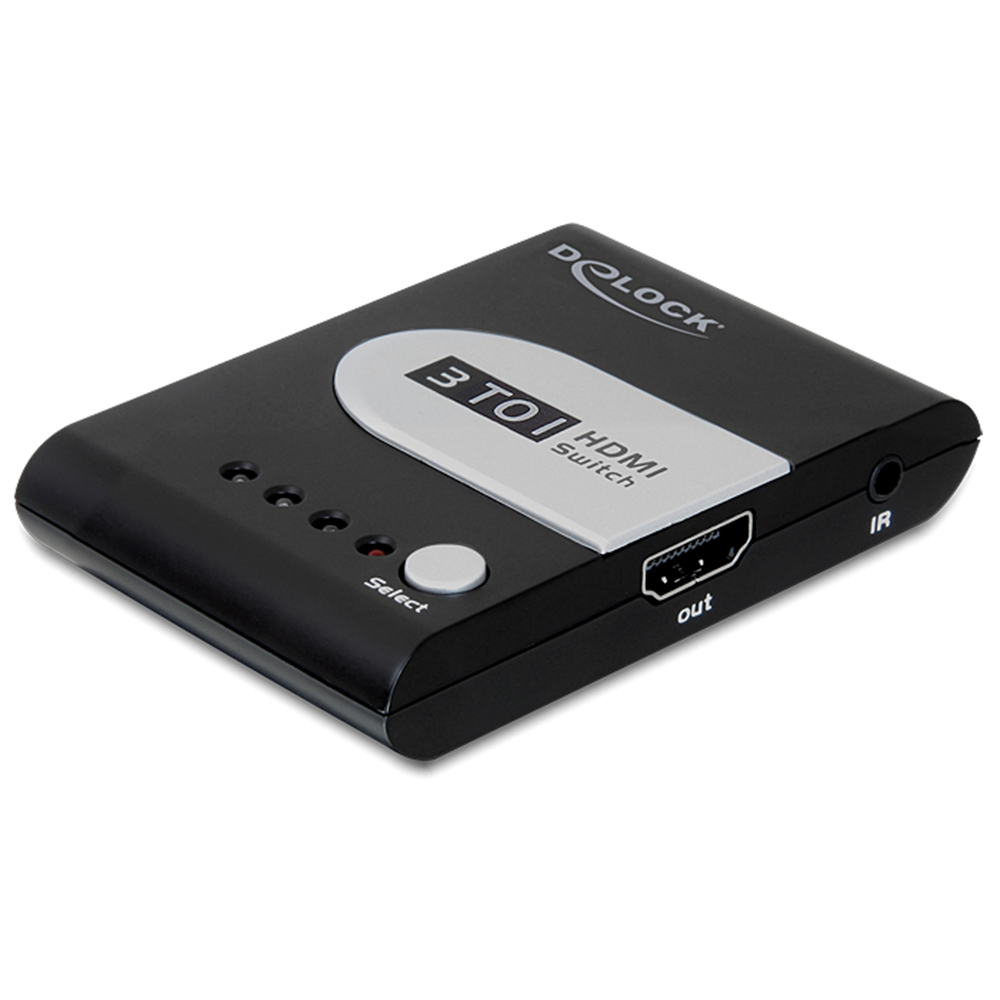

Delock High Speed HDMI Switch 3 in > 1 out

Specification

• Connector:
Input:
3 x HDMI-A 19 pin female
Output:
1 x HDMI-A 19 pin female
1 x stereo jack for infrared receiver
• High Speed HDMI
• Resolution up to Full-HD 1080p
• HDMI port switching: automatic function, “Select” button or
via infrared remote control
• LED indicators for active HDMI port
• Supports VGA, SVGA, XGA, UXGA mode
• Supports 8bit, 10bit und 12bit deep colour per channel
• No external power supply needed
• Supports cables with length of up to 20 m
• Dimensions (LxWxH): ca. 81.5 x 55 x 15 mm
• Plug & Play

Package content

• HDMI switch
• Infrared receiver

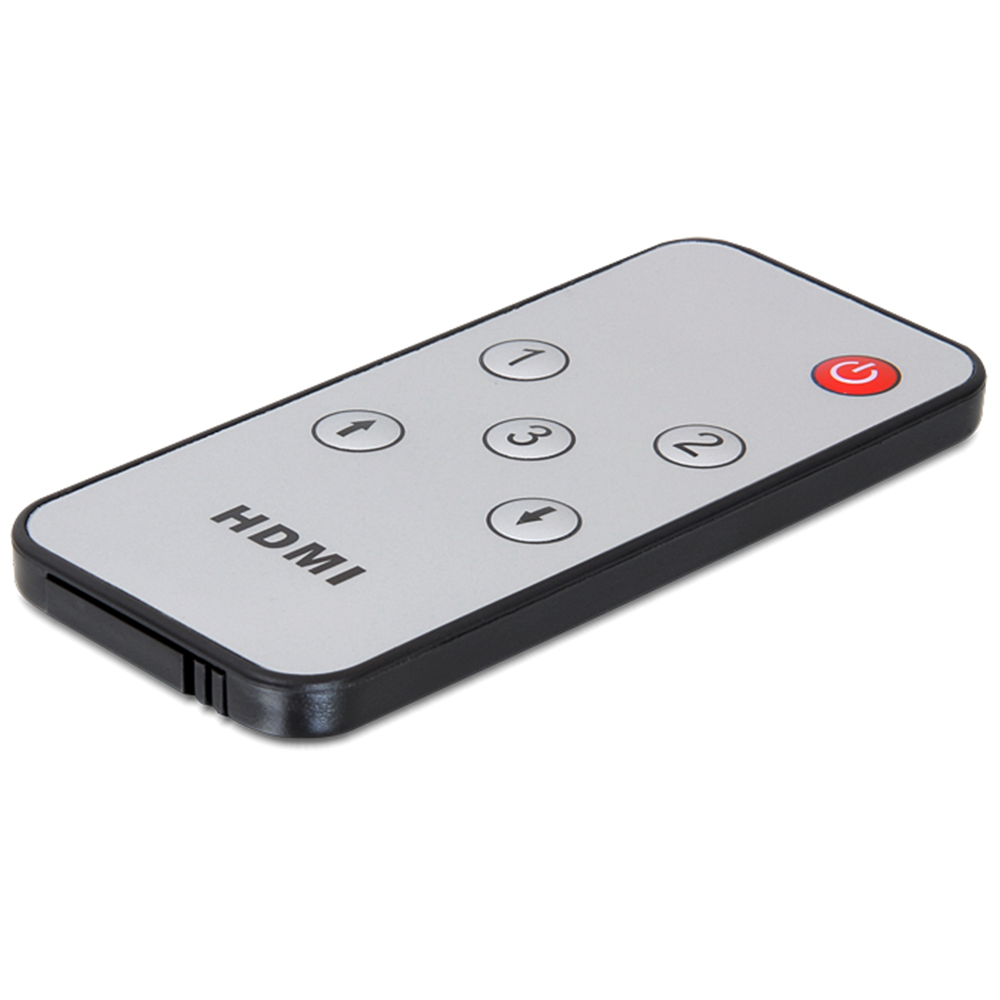

• Remote control
• User manual
