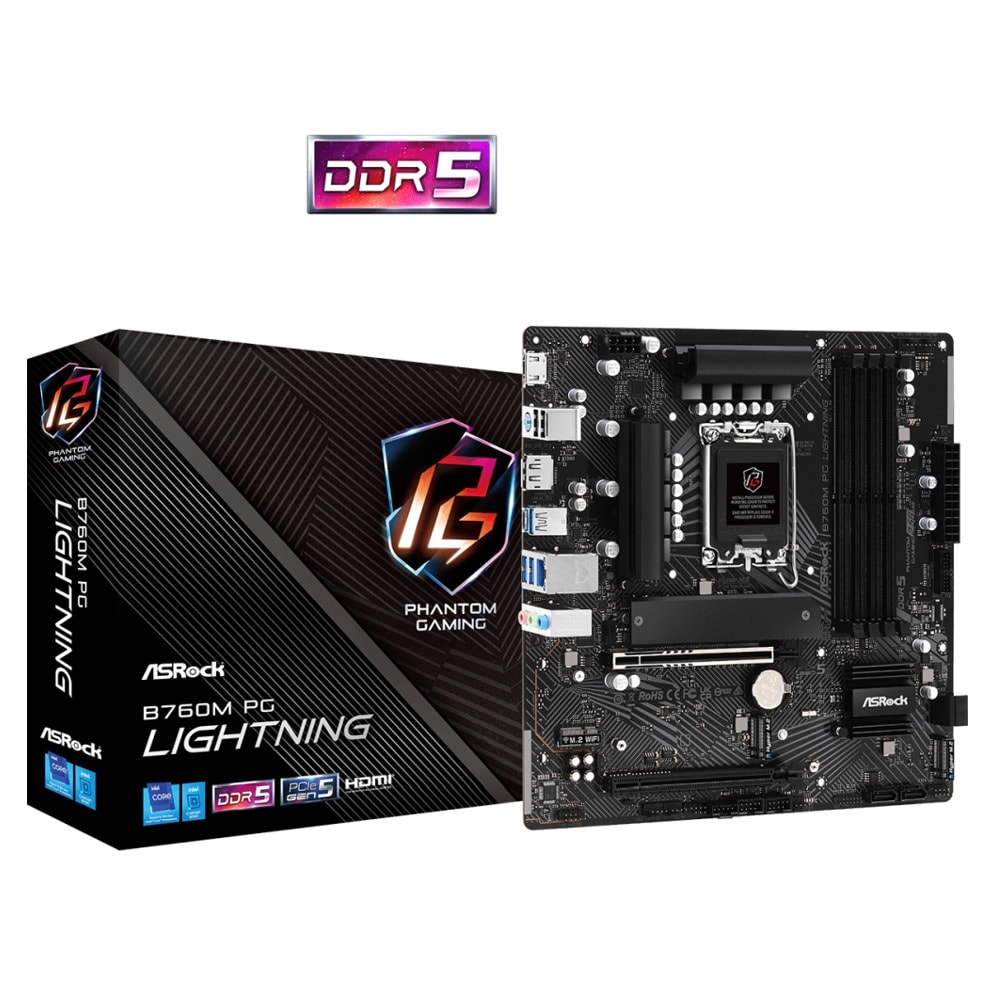

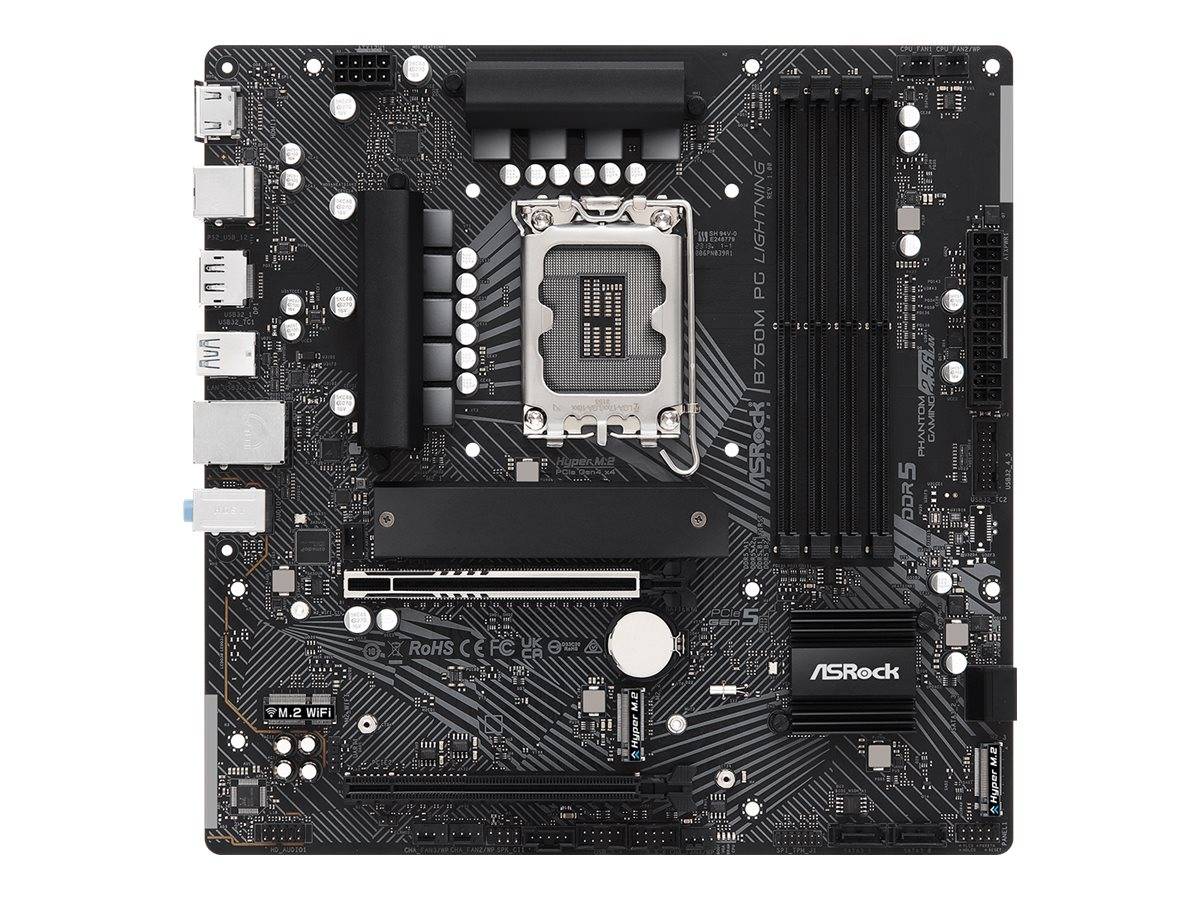

ASRock B760M PG LIGHTNING / Motherboard / micro ATX 90-MXBM20-A0UAYZ

167,00

Brand: ASRock
Model: B760M-PG
Type: M-ATX
Processor Manufacturer: INTEL
Processor Socket: LGA 1700
Compatible Processors:INTEL
Warranty: 2 Years

1 in stock

SKU: 90-MXBM20-A0UAYZ Categories: , , Tags: ,
Description

SPECIFICATIONS

Product Type Motherboard – micro ATX
Chipset Type Intel B760
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th and 13th Generation Intel Core)
Supported RAM Supported RAM
Max Size 192 GB
Technology DDR5
Bus Clock 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 7200 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Dragon RTL8125BG
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2
Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out – mini-jack ¦ 1 x audio line-in – mini-jack ¦ 1 x microphone – mini-jack ¦ 2 x aerial ¦ 2 x aerial ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces 1 x SPI – header ¦ 1 x Thunderbolt – header ¦ 1 x audio – header ¦ 2 x USB 2.0 – header ¦ 2 x USB 3.2 Gen 1 – header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features UEFI BIOS
Hardware Features ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, ASRock Steel Slots, Water Pump Header, ASRock POST Status Checker (PSC), Surface Mount Technology (SMT), ASRock Auto Driver Installer, 7+1+1 Phase Power Design, 50A Power Stage
Miscellaneous Miscellaneous
Included Accessories 4 x M.2 screws, IO shield, standoff for M.2 socket
Cables Included 2 x Serial ATA cable
Software Included ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software
Compliant Standards FCC Part 15, EuP Ready, ErP Ready, DisplayPort 1.4, UKCA
Width 24.4 cm
Depth 24.4 cm
Additional information
Brand

ASROCK

Socket

LGA1200

Processor

Intel Core i9

Size

Micro ATX
