| Product Type |

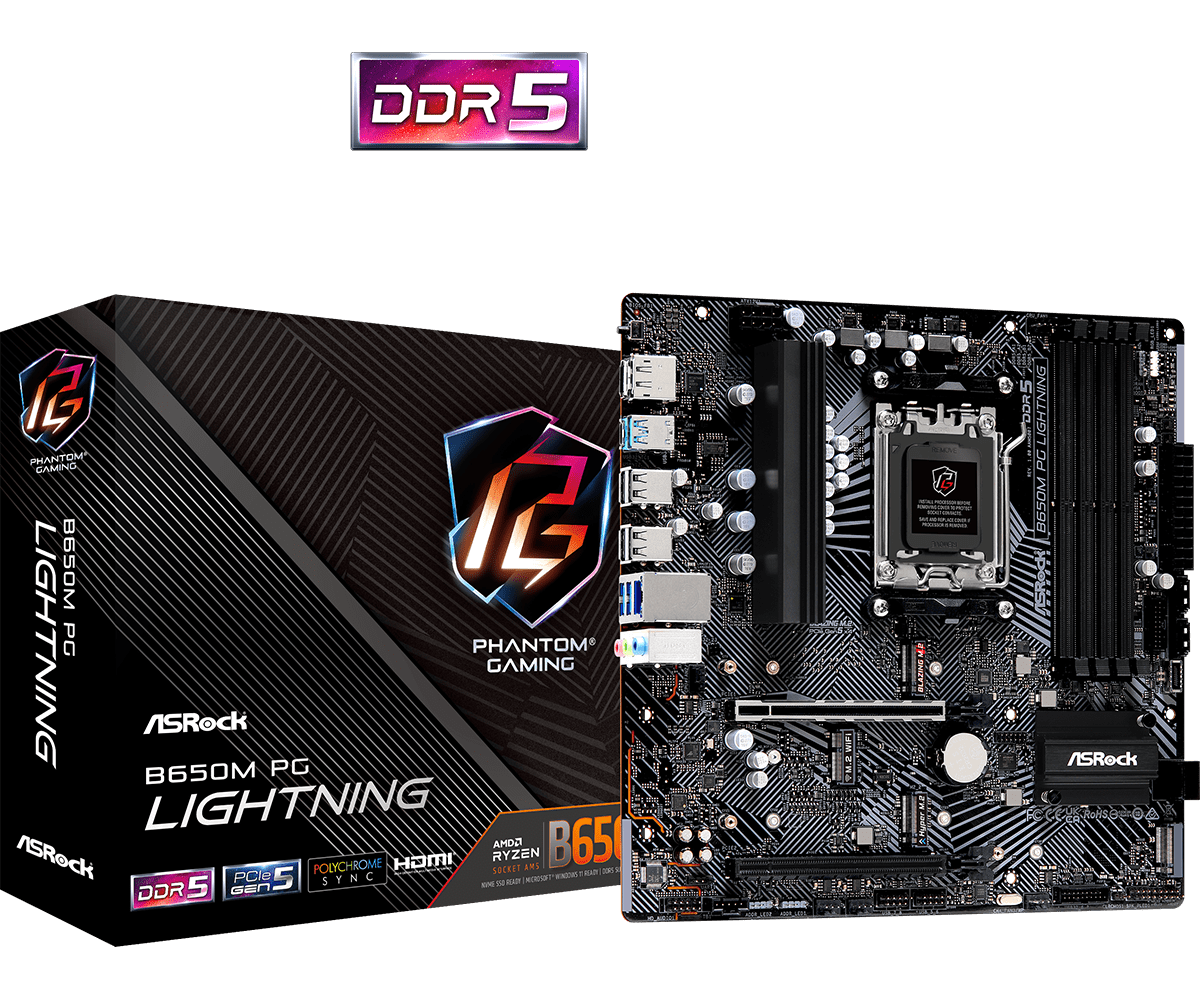

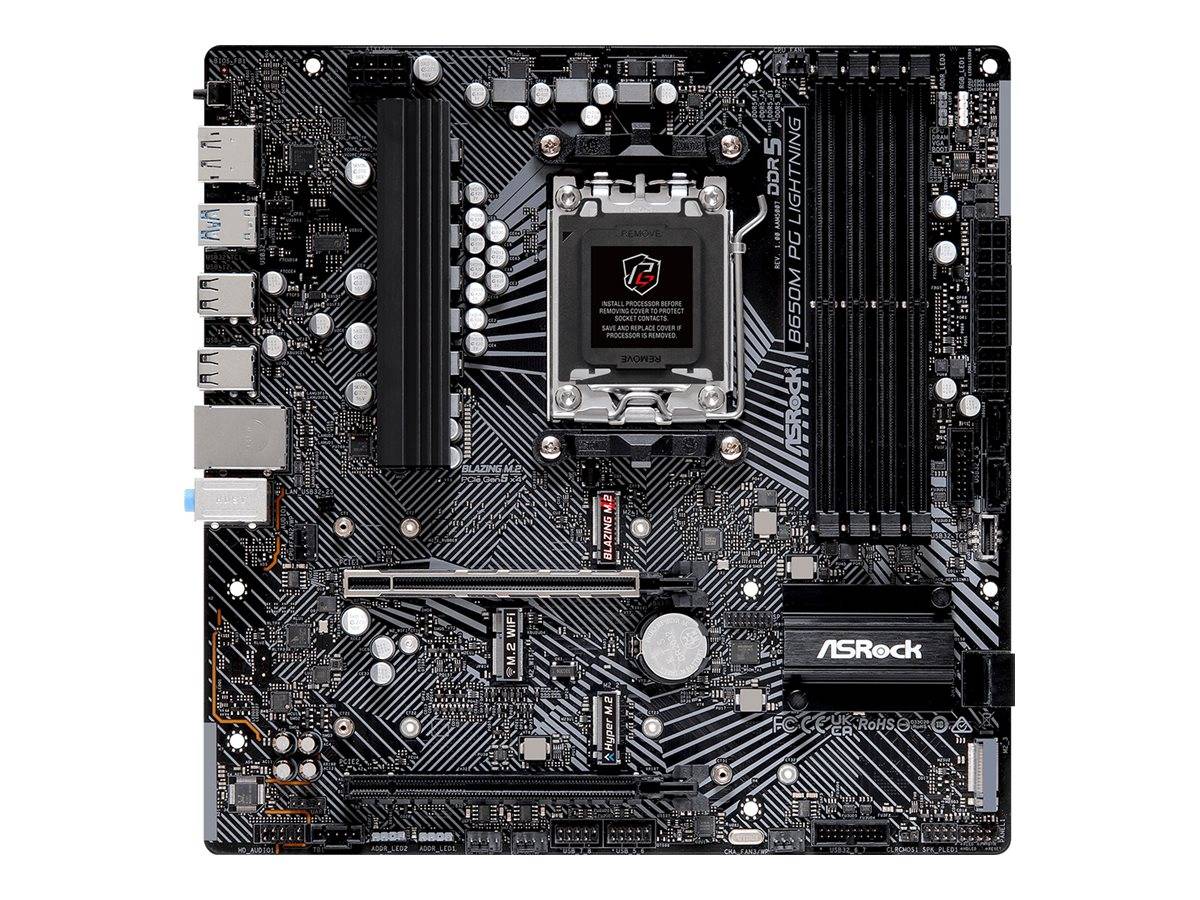

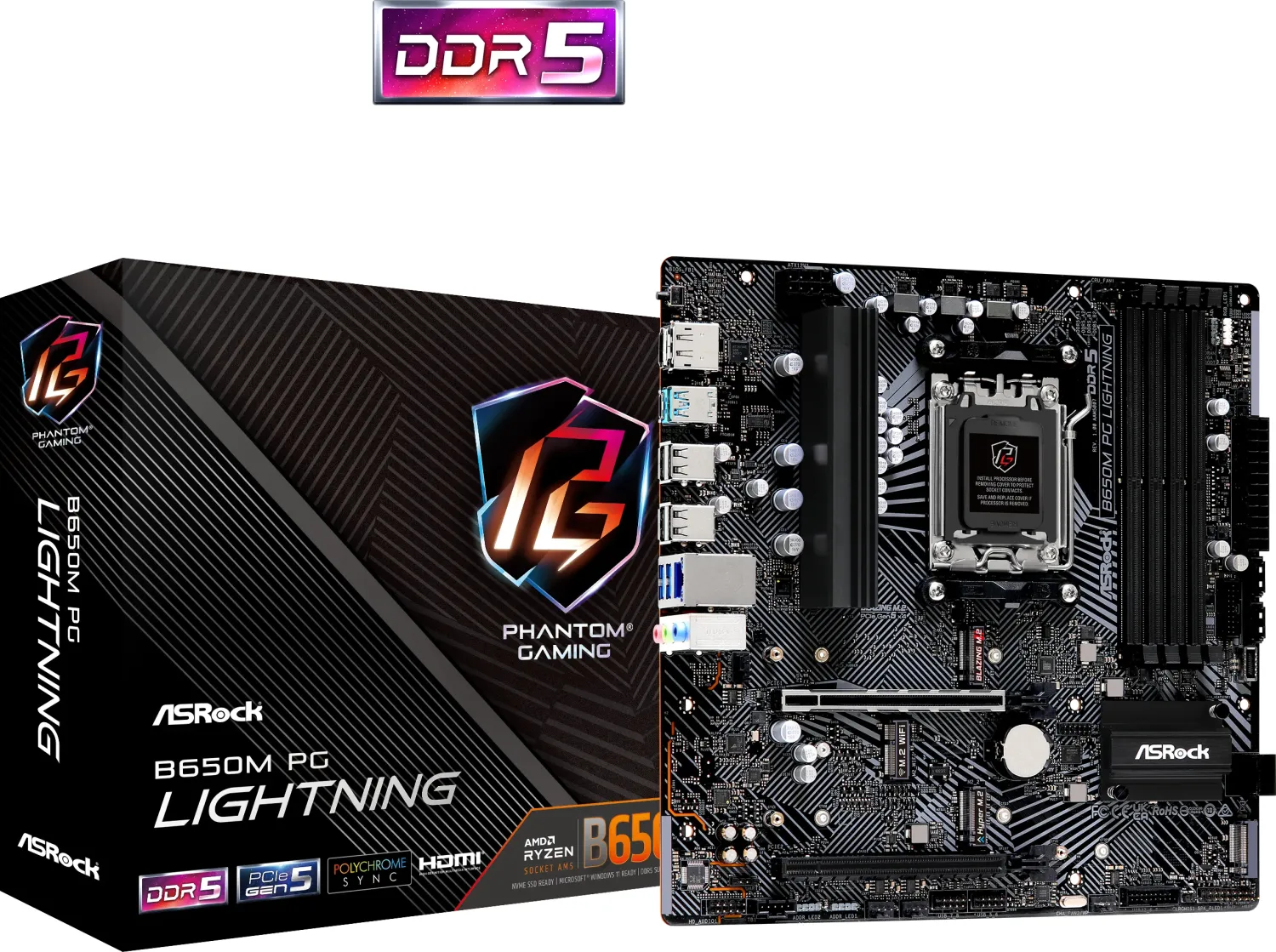

Motherboard – micro ATX |
| Chipset Type |
AMD B650 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
Ryzen (supports Ryzen 7000 Series) |
| Supported RAM |
Supported RAM |
| Max Size |
192 GB |
| Technology |
DDR5 |
| Bus Clock |
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz |
| Supported RAM Integrity Check |
Non-ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, AMD EXPO technology |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC897 |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Controller |
Dragon RTL8125BG |
| Network Interfaces |
2.5 Gigabit Ethernet |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 |
| Interfaces |
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in – mini-jack ¦ 1 x audio line-out – mini-jack ¦ 1 x microphone – mini-jack |
| Internal Interfaces |
4 x USB 2.0 – header ¦ 4 x USB 3.2 Gen 1 – header ¦ 1 x USB-C 3.2 Gen 1 – header ¦ 1 x SPI – header ¦ 1 x speaker – header ¦ 1 x audio – header ¦ 1 x Thunderbolt 4 – header |
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS |
| Hardware Features |
ASRock OC Tuner, Dr.MOS MOSFET, Nahimic Audio Enhacer, Water Pump Header, ASRock POST Status Checker (PSC), reinforced PCIe slots, 6+2+1 Phase Power Design, ASRock Auto Driver Installer, BIOS FlashBack button, AMD Precision Boost Overdrive (PBO) |
| Miscellaneous |
Miscellaneous |
| Included Accessories |
3 x M.2 screws, IO shield |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC |
| Compliant Standards |
FCC, RoHS, EuP Ready, ErP Ready, UKCA |
| Width |
24.4 cm |
| Depth |
24.4 cm |
